Overview
Details for EISK5-100T

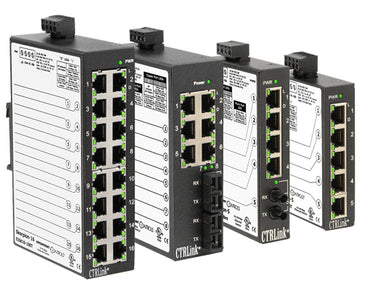

5-port 10BASE-T/100BASE-TX Skorpion switch, DIN-rail mount
Description
The Skorpion Switch is intended for control panel installations where DIN-rail space is at a premium by requiring a width of only one inch (26mm) of rail space. A metal DIN-rail clip attached to the aluminium enclosure can survive the toughest installation. A writable side label allows the installer an opportunity to document field cabling locations right on the unit.
There are three fibre models: multimode with ST connectors, multimode with SC connectors and single-mode with SC connectors. With single-mode, distances up to 15 km are possible.
The switch can be powered from a 10–36 VDC or a 24 VAC (±10%) source. Its half-wave rectified low-voltage power supply allows the sharing of power with other 24 VAC/VDC control devices from a common power supply. With redundant power connections, a backup power scheme can be supported. A removable power connector facilitates the servicing of the unit.
LEDs built into the connector indicate data rate and activity on each of the five ports. For each port, the data rate will be indicated along with port activity thereby greatly assisting in troubleshooting connection issues.
The switch is UL 508 Listed and c-UL Listed for Industrial Control Equipment. It complies with CFR 47 Part 15 Class A, and carries the CE Mark. It is RoHS compliant.
Specifications
Item Number | EISK5-100T |
Brand | Contemporary Controls |
Operating Temperature Range | 0 C to 60 C |
Ports | 5 |
Speed | 10/100 |
Switch Type | Basic |
