FS-2-CND | Paddle flow switch | NPT process connection | conduit electrical connection | Dwyer
Paddle flow switch, NPT process connection, conduit electrical connection

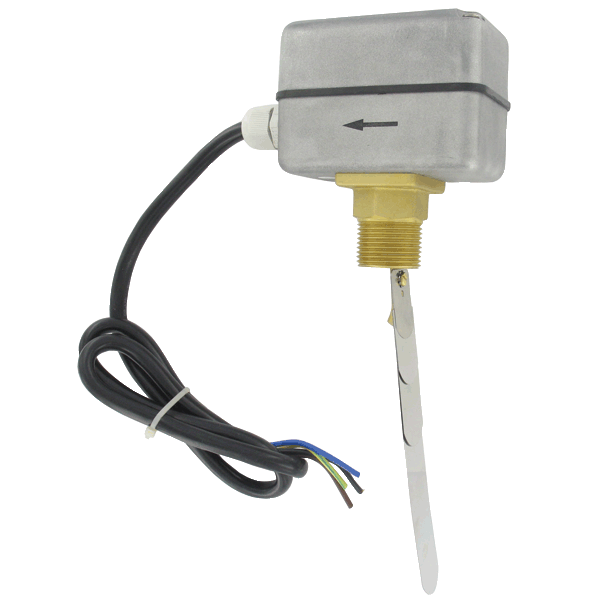

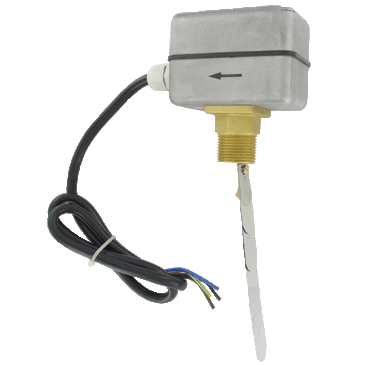

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FS-2-CND
Documents and manuals
Dwyer FS-2-CND Documents
Overview
Details for FS-2-CND
See catalog product page for full listing
Paddle flow switch | NPT process connection | conduit electrical connection
SERIES FS-2 VANE FLOW SWITCH
Low Cost, Field Adjustable Set Point and Paddle
The Series FS-2 Vane Flow Switches offers an economical flow proving solution. The FS-2 paddles are adjustable to fit 1 to 8" size pipe.
Product Applications
- Boiler flow proving
- Hot water heaters
- Chillers
- Cooling lines
- Machinery
- Liquid transfer systems
- Field adjustable set point adjustment screw allows for easy flow switch modification
- Custom application set points enabled by field adjustable vane layers
- Aluminum weatherproof housing permits outdoor installation
Specifications
- Series
- FS-2 VANE FLOW SWITCH
- Service
- Compatible liquids.
- Wetted Materials
- Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
- Temperature Limits
- 230°F (110°C).
- Pressure Limits
- 145 psig (10 bar).
- Enclosure Rating
- NEMA 4 (IP64).
- Switch Type
- SPDT snap switch.
- Electrical Rating
- 10 A res; 3 A ind @ 250 VAC.
- Electrical Connection
- Cable gland with attached wire leads or optional conduit connection.
- Process Connection
- 1" male NPT or BSPT.
- Mounting Orientation
- Switch must be installed vertically on horizontal pipe runs.
- Set Point Adjustment
- Four vane combinations and an adjustment screw.
- Enclosure
- Die-cast aluminum alloy.
- Weight
- 28.22 oz (0.8 kg).
- Agency Approvals
- CE.
