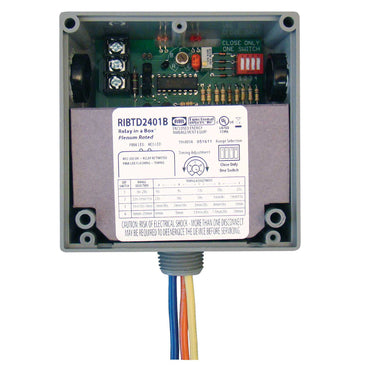

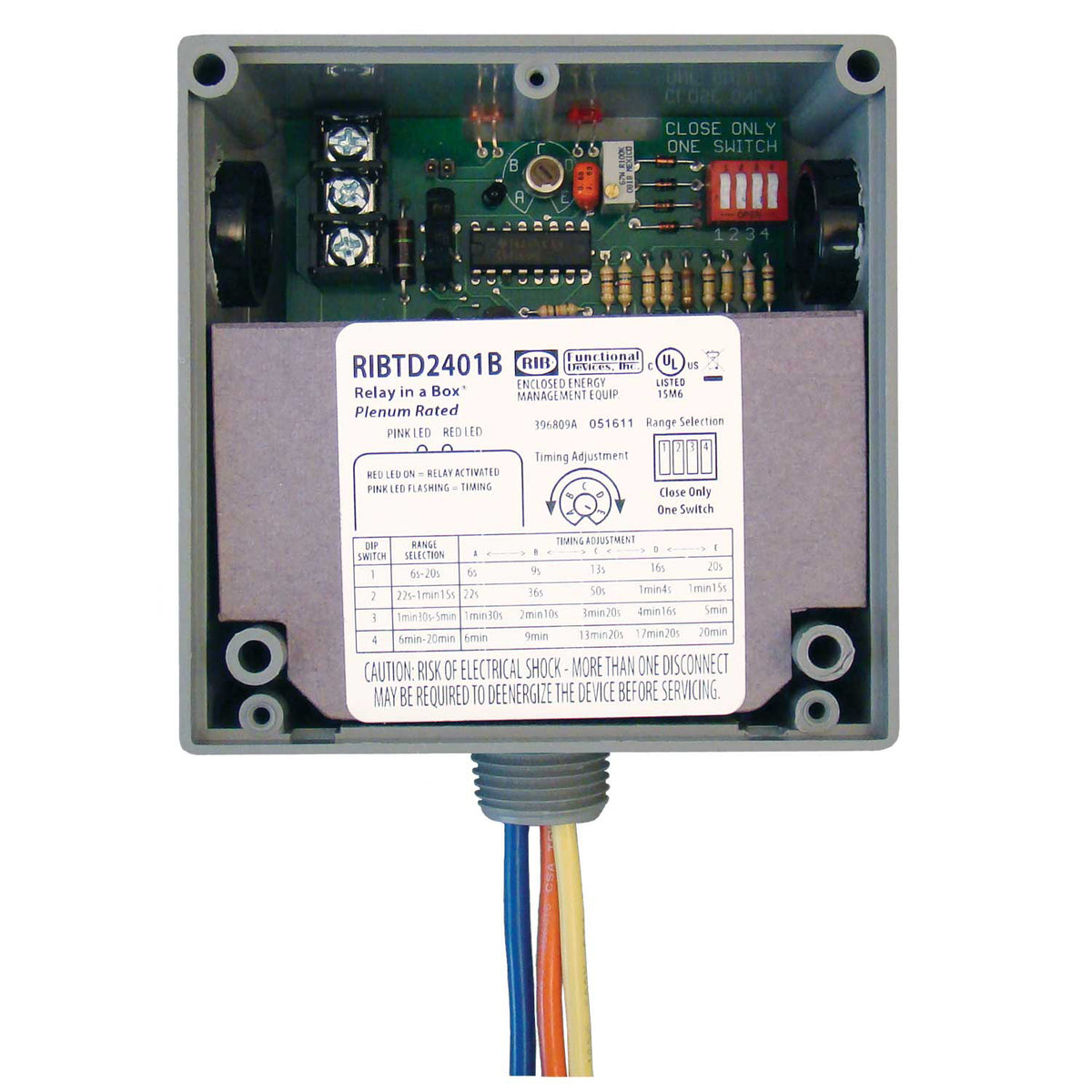

RIBTD2401B | Enclosed Time Delay Relay Hi/Low sep 20Amp SPDT 24Vac/dc 120Vac | Functional Devices
Time Delay Power Relay, 20 Amp SPDT, 24 Vac/dc/120 Vac Coil, NEMA 1 Housing
Overview
Details for RIBTD2401B
Enclosed Time Delay Relay Hi/Low sep 20Amp SPDT 24Vac/dc 120Vac
Specifications
# Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 6ms after time delay
Relay Status: RED LED On = Activated
Time Delay Status: PINK LED FLASHING = Timing
Timing Mode: Delay On Make (N/O)
Timing Range: 6 seconds - 20 minutes
Timing Adjustment: 4 position DIP switch for range selection and single turn potentiometer for timing adjustment within range
Timing Tolerance: Switches 1& 2 = +10%
Timing Repeatability: Switches 3 & 4 = +5% +1%
Temperature Timing Variance: +1%
Voltage Timing Variance: +1%
Recycle Time: 750ms Maximum
Dimensions: 4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT nipple
Approvals: UL Listed, UL916, C-UL, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: No
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
770 VA Pilot Duty @ 120 Vac
1,110 VA Pilot Duty @ 277 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac
Input Current:
133 mA @ 24 Vac
45 mA @ 24 Vdc
51 mA @ 120 Vac
Coil Voltage Input:
24 Vac/dc ; 120 Vac ; 50-60 Hz
Drop Out = 3 Vac / 3.8 Vdc
Pull In = 20 Vac / 20 Vdc
Specifications
Item Number | RIBTD2401B |
Brand | Functional Devices |
Coil | 120VAC |
Coil | 24VAC/DC |
Enclosed | Yes |
Track Mounted | No |
Type | Pilot w Enclosure |
