9070T75D2 | TRANS CNTRL 75VA 240/480V-24V | Square D by Schneider Electric

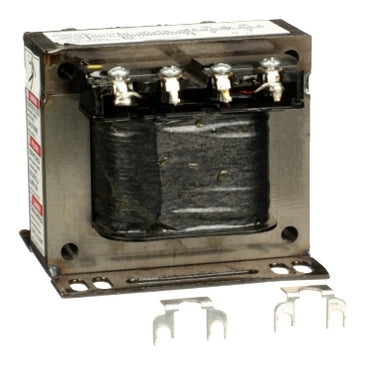

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T75D2
Overview
Details for 9070T75D2
TRANS CNTRL 75VA 240/480V-24V
Type T is our most popular and complete line of control transformers that Schneider Electric These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 75VA and is single phase. It has a 240/480 V primary voltage and 24 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 2.89 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.Specifications
- Product Type
- Industrial Control Transformer
- Power Rating
- 75 VA
- Type
- T
- Number of Phases
- 1 phase
- Power Rating
- 75 VA UL;CSA;NOM
- Temperature Rise
- 55 °C
- Electrical Connection
- Screw clamp terminals
- Height
- 2.89 in (73.41 mm)
- Width
- 3.38 in (85.85 mm)
- Depth
- 3.34 in (84.84 mm)
- Material
- Copper winding
- Fingersafe Cover Compatibility
- FSC1
- Certifications
- UL listed file E61239;CSA file LR37055 guide 184-N-90
- Enclosure Type
- Not rated (open device)
- Insulation Temperature
- 221 °F (105 °C)
- Category
- 16200-9070 T (NOT TF) 50-200VA
- Discount Schedule
- CP8
- GTIN
- 785901904977
- Number of Units in Package 1
- 1
- Package 1 Weight
- 3.80 lb(US) (1.724 kg)
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Package 1 Height
- 3.80 in (9.652 cm)
- Package 1 Width
- 4.00 in (10.16 cm)
- Package 1 Length
- 4.10 in (10.414 cm)
- Warranty
- 10 Years
