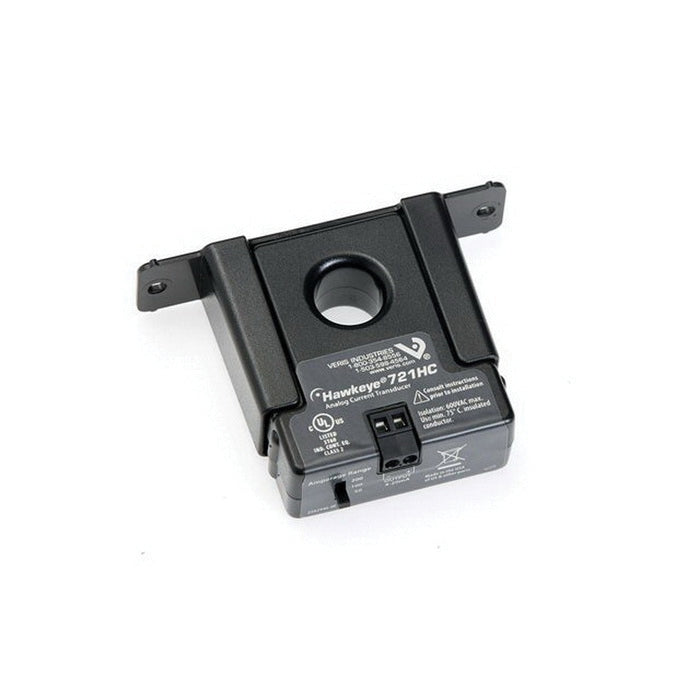

Solid Core | Range:0-50 | 0-100 | 0-200AAC Sw Select | Output:4-20mA
Features
- Power the sensor, and receive the signal with only two wires lower cabling and commissioning costs than with traditional 3-wire sensors
- Self-gripping, split-core design for fast retrofit installation no need to remove conductor (H921)
- Economical solid-core features adjustable bracket for easy alignment (H721 Series)
- Factory calibrated switch-selectable ranges for high resolution and installation ease
- Three field-selectable ranges per unit fewer versions to choose from, stock, and install
- Removable mounting bracket for installation flexibility
- Bracket on H921 can be installed in three different configurations added flexibility
- 100% solid state, no moving parts to fail
- 5-year warranty
Description
The Hawkeye 721LC, 721HC, and 921 provide accurate load trending information with a proportional 4-20mA output signal. Preset slideswitches provide easy field setup of sensed amperage range with no need for jumpers.
Application
- Load trending
- Motor control
- Fan/Pump Status
Specifications
Sensor Power 30mA (max)@12-30VDC
Insulation Class 600VAC RMS (UL), 300VAC RMS (CE)
Frequency 50/60 Hz
Temperature Range -15° to 60°C (5° to 140°F)
Humidity Range 10-90% RH non-condensing
Accuracy ±2% F.S. from 10% to 100% of selected range, but not less than ±0.4A
Response Time 2 sec.
Terminal Block Wire Size 24-14 AWG (0.2 to 2.1 mm 2)
Terminal Block Torque 3.5 to 4.4 in-lbs (0.4 to 0.5 N-m)
Agency Approvals UL 508 open device listing; CE: EN61010-1, CAT III, pollution degree 2, basic insulation
Specifications
Item Number | H721HC |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Solid Core |
Current Measurement Accuracy | ±2% of F.S. above 10% of F.S. |
Current Measurement Range | 0 - 50 A | 0 - 100 A | 0 - 200 A |
Current Sensor type | Current Transducer; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H721HC |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.7" (18 mm) |
Mounting | Solid Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | 4 - 20 mA |
Outputs | Analog output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX21 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Sensor (Hawkeye) |
Warranty | 5 years |
