AFB24-SR-X1 | Valve Actuator | Spg Rtn | 24V | Modulating | Belimo

Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, modulating

Belimo | AFB24-SR-X1

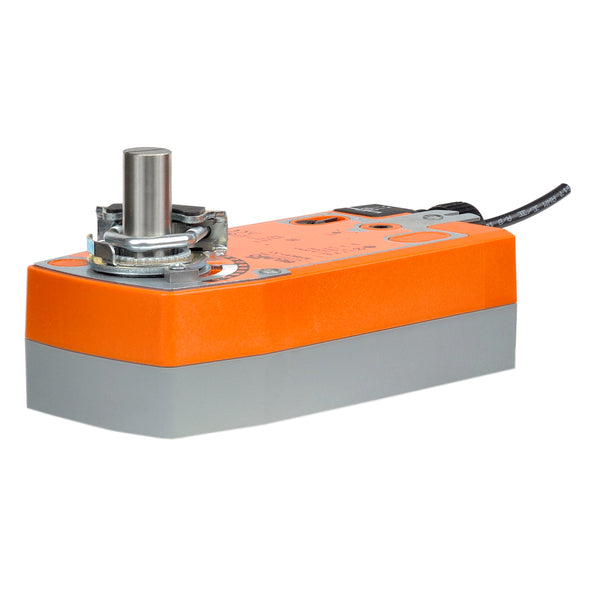

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFB24-SR-X1
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AFB24-SR-X1 Documents

Datasheet More Info

Overview

Details for AFB24-SR-X1

Valve Actuator | Spg Rtn | 24V | Modulating

Modulating, Spring Return, AC 24 V/DC, for DC 2...10 V or 4...20 mA Control Signal

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
250
Controllable Flow Range
Stem up - open B b AB
Cv
28
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Bronze
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Spring return
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
5.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
95 s / 90B0
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply
KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo
$20.25 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo SH8 Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Blackhawk Supply
SH8 | Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Belimo
$19.35 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
