F6125HD+DKRX24-3-T N4 | Butterfly Valve | 5" | 2 Way | 1022 Cv | w/ Electronic Fail-Safe | 24V | On/Off | NEMA 4 | Belimo
Butterfly Valve (BFV), 5", 2-way, ANSI Class Consistent with 125, Cv 1022 |Valve Actuator, Electronic fail-safe, AC 24 V, On/Off, Floating point, NEMA 4X, terminals

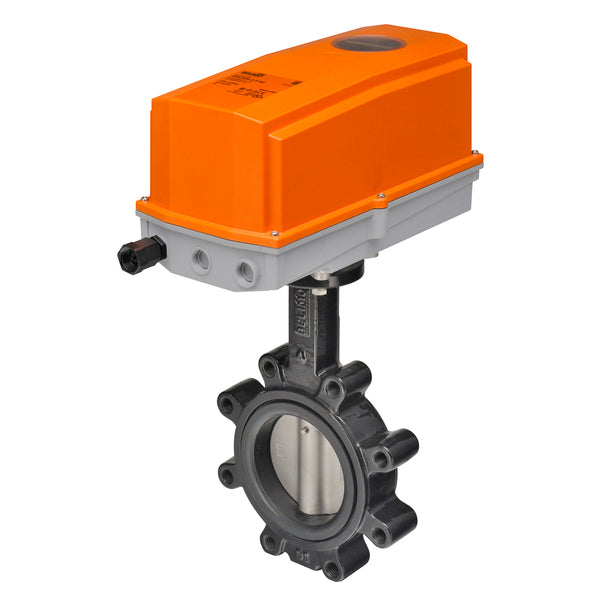

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6125HD+DKRX24-3-T N4
Documents and manuals
Belimo F6125HD+DKRX24-3-T N4 Documents
Overview
Details for F6125HD+DKRX24-3-T N4
Butterfly Valve | 5" | 2 Way | 1022 Cv | w/ Electronic Fail-Safe | 24V | On/Off | NEMA 4
Specifications
- Valve specifications
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1022
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Under cover
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 90 Nm
- Voltage AC/DC
- AC 24 V
