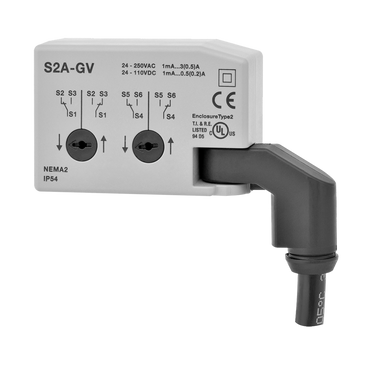

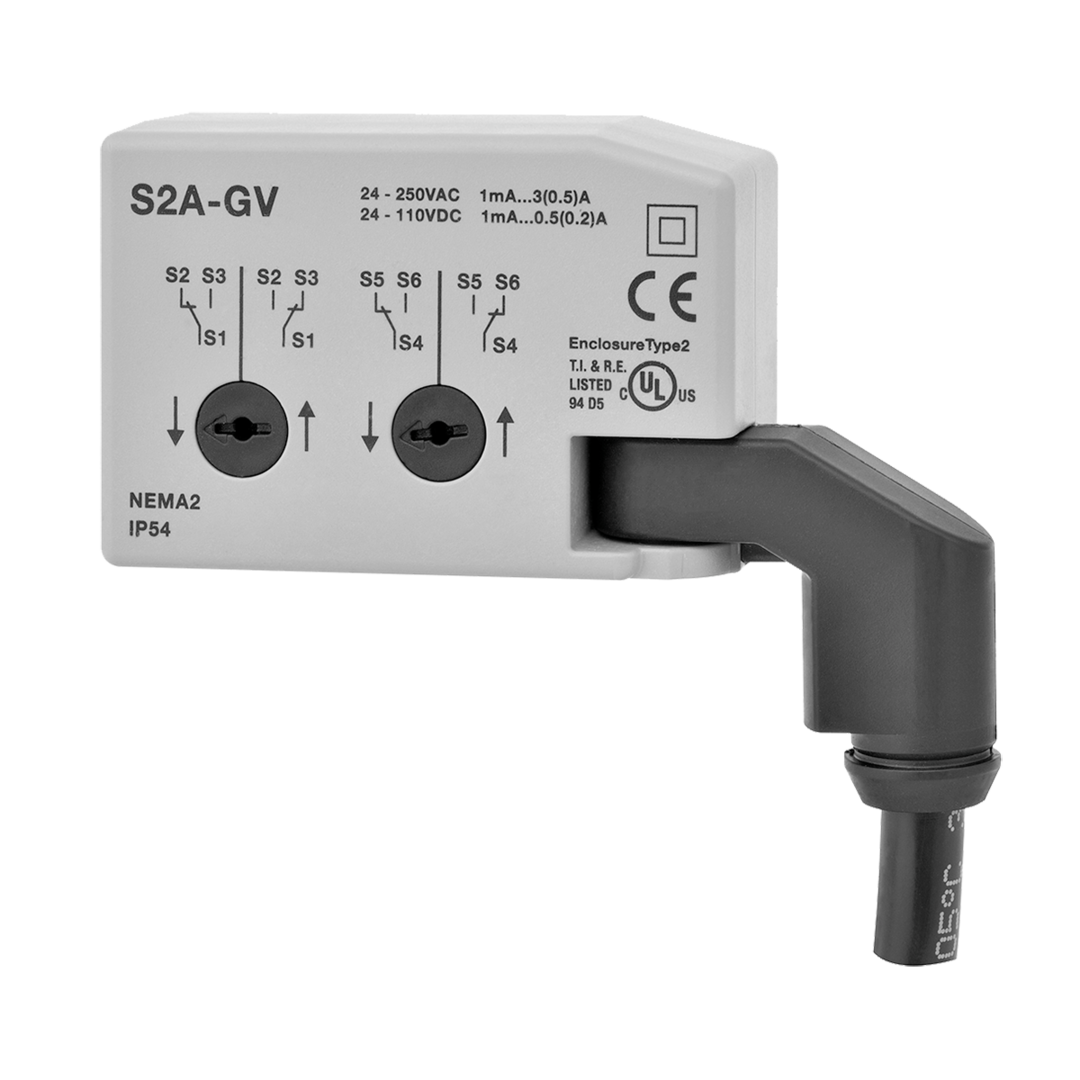

2xSPDT Aux switch for NG GV Actuators 3A (.5A inductive) @ 250 VAC
Overview
Details for S2A-GV
2xSPDT Aux switch for NG GV Actuators 3A (.5A inductive) @ 250 VAC
2xSPDT Aux switch for NG GV Actuators 3A (.5A inductive) @ 250 VAC
Application
The S2A-GV axillary switch is used to indicate when a desired position of a glove valve has been reached. Additionally it can be used to control other devices such as a fan or light and/or for use with other specific control sequences.
Operation
The S2A-GV auxiliary switches are mounted onto the Linear globe actuators. The switches are modular units that mount directly onto LV, SV, AVK, EV and RV type actuators and are locked into place by guiding grooves on the sides of the actuator.
A driver disk is attached to the actuator clamp and offers direct transmission of the actuator position to the micro switch cams. The switching points can be set over the full scale of UP to DOWN simply by adjusting the slotted discs.
Specifications
- Auxiliary Switches
- 2 x SPDT
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
