TFB24-MFT | Damper Actuator | 22 in-lb | Spg Rtn | 24V | MFT | Belimo
Damper Actuator, 22 in-lb [2.5 Nm], Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

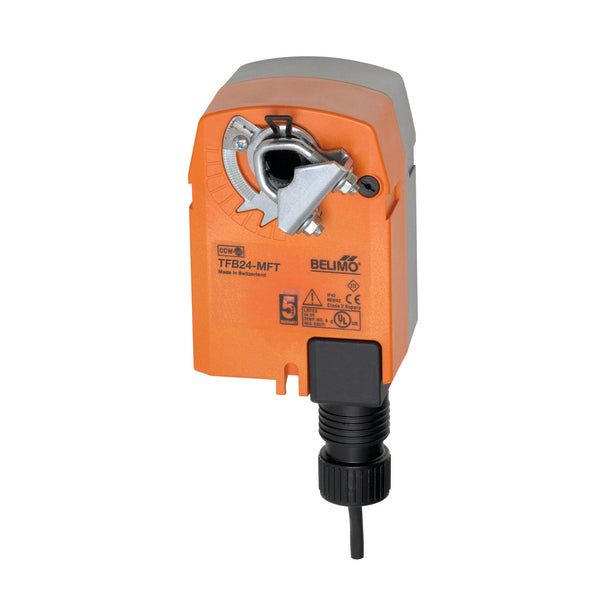

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFB24-MFT
Documents and manuals
Belimo TFB24-MFT Documents
Overview
Details for TFB24-MFT
Damper Actuator | 22 in-lb | Spg Rtn | 24V | MFT
Application
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication.
Default/Configuration
Default parameters for 2 to 10 VDC applications of the TF..-MFT actuator are assigned during manufacturing. If required, custom versions of the actuator can be ordered. The parameters are variable and can be changed by three means: Factory pre-set or custom configuration, set by the customer using PC-Tool software or the handheld ZTH US
Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- Control Type
- MFT/Programmable
- Degree of Protection
- IP42 NEMA 2 UL Enclosure Type 2
- Direction of Rotation (Fail-Safe)
- Reversible with cw/ccw mounting
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 150 s /
- Running Time range (Motor)
- 75...300 s
- Safety Function
- YES
- Torque
- 22 in-lb [2.5 Nm]
- Voltage AC/DC
- AC/DC 24 V
