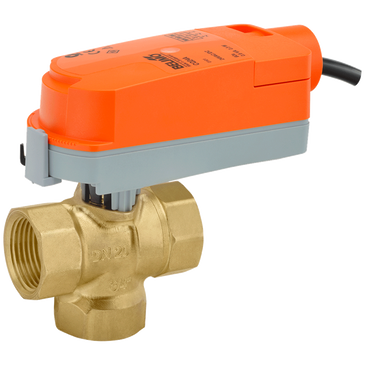

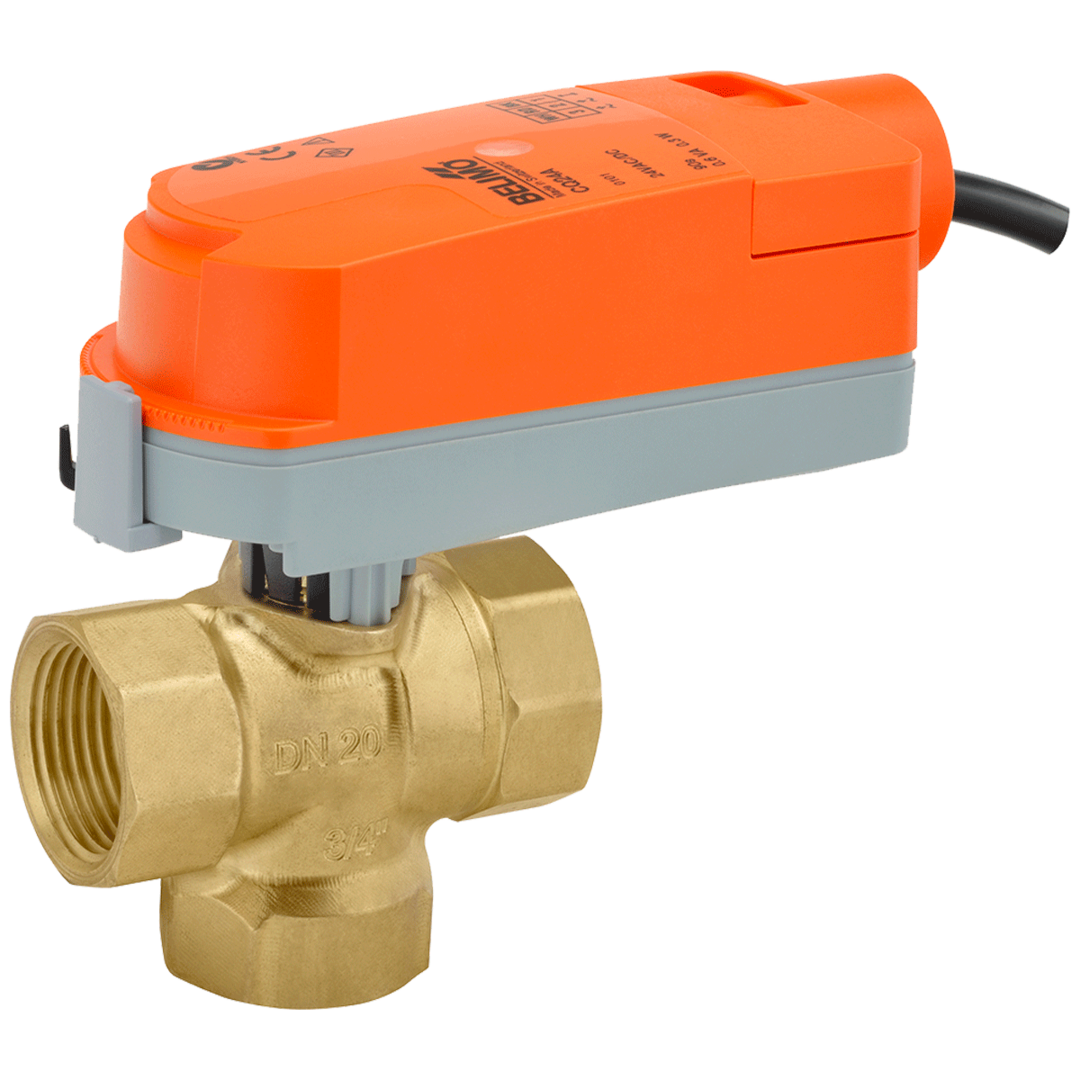

Z3050Q-E+CQBUP-3 | ZoneTight | 0.5" | 3 Way | 2.7 Cv | w/ Non-Spg | 110 to 240V | On/Off/Floating | Belimo
ZoneTight™ (QCV), 1/2", 3-way, Cv 1 |Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z3050Q-E+CQBUP-3
Documents and manuals
Belimo Z3050Q-E+CQBUP-3 Documents
Overview
Details for Z3050Q-E+CQBUP-3
ZoneTight | 0.5" | 3 Way | 2.7 Cv | w/ Non-Spg | 110 to 240V | On/Off/Floating
ZoneTight | 0.5" | 3 Way | 2.7 Cv | w/ Non-Spg | 110 to 240V | On/Off/Floating
Application
The QCV zone valves are suited for large commercial buildings where higher close-off and the ability to change flow is desired. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Cv
- 1
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP40 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 0.7 W
- Power Consumption (Running)
- 1 W
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 100...240 V
