1BL070 | PL-130/3", 2/5 HP Cast Iron Booster Pump | Bell & Gossett

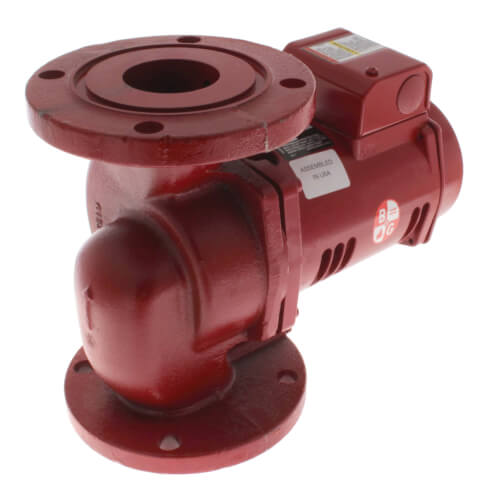

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1BL070
Documents and manuals
Bell & Gossett 1BL070 Documents
Overview
Details for 1BL070
PL-130/3", 2/5 HP Cast Iron Booster Pump
The Series PL close coupled booster pumps arespecifically designed for quiet operation in hydronic,radiant and geothermal heating and coolingsystems.Features:
- B&G's powerful, dry-motor design delivers exceptional performance
- 25% more efficient than competition
- Precision-machined and balanced alloy steel rotor for superior performance. Series-PL
- Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
- XL-11 Precision-Crafted Bearing System
- Permanently oil lubricated
- Completely maintenance free
- Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
- Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
- Double sided stainless steel neck ring for optimum efficiency
Specifications
Item Number | 1BL070 |
Brand | Bell & Gossett |
Amperage | 4.8 |
Application | Heating |
Connection Size | 3" |
Connection Type | Flanged x Flanged |
Family | CIRCULATOR PUMPS |
Flow Range (GPM) | 0-130 |
Head Range (ft.) | 0-20 |
Hertz | 60 |
Horse Power | 2/5 |
Material | Cast Iron |
Max Flow (GPM) | 130 |
Max Head (Ft) | 20 |
Max Pressure (PSI) | 150 |
Max Temp (F) | 225°F |
Phase | 1 |
Pump Type | Cast Iron Pumps |
Pump Type | Circulator Pumps |
RPM | 3200 |
Series | PL Series Cast Iron Booster Pumps |
Type | Booster Pump |
Type | Circulator |
Type | Pump |
Voltage | 115v |
