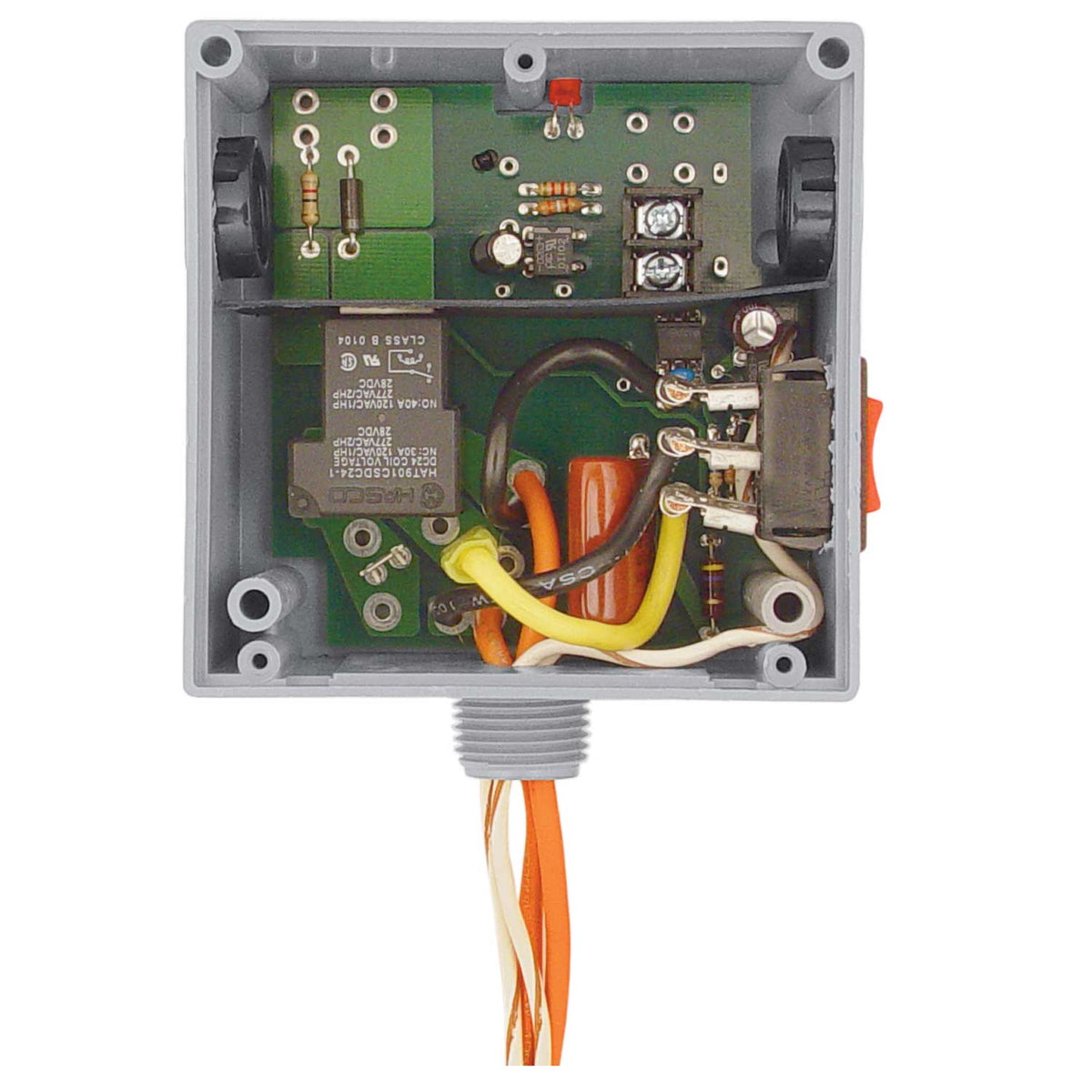

Low Input/Optoisolated Relay, 20 Amp SPST + Override, 208-277 Vac Power Input, 5-25 Vac Control Input, Hi/Lo Voltage Separation, NEMA 1 Housing
Overview
Details for RIBTE02SB
Enclosed Relay Hi/Low sep 20Amp SPST + Override 208-277Vac power + 5-30Vac/dc
Specifications
Power Input: 208-277 Vac, 50-60 Hz
Control Input: 5-25 Vac/dc, 50-60 Hz
# Relays & Contact Type: One (1) SPST Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms
Relay Status: LED On = Activated
Dimensions: 4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: Yes
Contact Ratings:
20 Amp Resistive @ 277 Vac
1110 VA Pilot Duty @ 277 Vac
770 VA Pilot Duty @ 120 Vac
20 Amp Ballast @ 277 Vac (N/O)
10 Amp Ballast @ 277 Vac (N/C)
Not rated for Electronic Ballast
10 Amp Tungsten @ 120 Vac (N/O)
240 Watt Tungsten @ 120 Vac (N/C)
2 HP @ 277 Vac
1 HP @ 120 Vac
Power Input Ratings:
69 mA @ 208-277 Vac
Control Input Ratings:
.4 mA @ 5 Vdc
.9 mA @ 10 Vdc
1 mA @ 12 Vdc
2 mA @ 24 Vdc
3 mA @ 24 Vac
(Non Polarized)
Specifications
| Item Number | RIBTE02SB |
| Brand | Functional Devices |
| Coil | 5-30VAC/DC |
| Enclosed | Yes |
| Track Mounted | No |
| Type | Optical Isolated |
