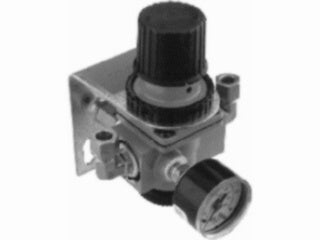

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-4000-138

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Johnson Controls A-4000-138 Documents

Datasheet Installation Instructions More Info

Overview

Details for A-4000-138

REGULATOR; PRESSURE 3/8"; W/BRACKET; GAUGE & SAFETY RELIEF VALVE

Description

The Remote Mounted Pressure Reducing Station regulates the output pressure in a pneumatic control system to within 0.02 psi (1.4 kPa) with a 20 psi (140 kPa) variation in input pressure. Refer to A-4000 Series Oil Removal and Pressure Reducing Stations & Air Compressor Accessories (LIT-7188060) for important product information.

Features

Arrives completely assembled with:

wall mounting bracket
0 to 30 psig gauge
adjustable pressure knob
pressure relief valve factory set at 25 psig; adjustable if required
3/8 in. O.D. compression elbow fittings on the high and low pressure sides

A-4000-138 Pressure Regulator With Bracket - Gauge - Safety Relief Valve
0 - 50 PSIG Pressure Range
25 scfm Air Flow

Specifications

Item Number	A-4000-138
Brand	Johnson Controls
Category	Dryer & Air Compressor Accessories
Section	Pressure Reducing Station
SubCategory	Pressure Reducing Station
