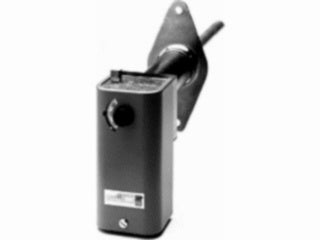

A25CP-1C | AIR TEMP CNTL; ROD & TUBE; 25/215F; MANUAL RESET; SPDT; CONSEALED SCALE; FM APPROVED; HIGH LIMIT | Johnson Controls
Documents and manuals
Johnson Controls A25CP-1C Documents
Overview
Details for A25CP-1C
AIR TEMP CNTL; ROD & TUBE; 25/215F; MANUAL RESET; SPDT; CONSEALED SCALE; FM APPROVED; HIGH LIMIT
Description
The A25 Warm Air Control Locks out on a temperature increase to the control setpoint. Manual reset is required before the electrical contacts can be reclosed. The A25 Control is normally located in a return air duct and is wired to shut down air conditioning or ventilating fans when the temperature of the air becomes excessively hot. Refer to the A25 Series Warm Air Control with Manual Reset Product Bulletin (LIT-125118) for important product application information.
Applications
Use for high temperature cut-out.
Features
- trip-free reset lever does not permit restarting until the reset lever is manually released
- the rod and tube type sensing element provides positive control action
- A25 Series Warm Air Limit Control with Manual Reset
- SPDT
- Consealed Scale
- FM Approved
- High Limit
Specifications
| Item Number | A25CP-1C |
| Brand | Johnson Controls |
| Category | Thermostats & Controllers |
| Section | Air Temperature Controller |
| SubCategory | Air Temperature Controller |
| Thermostat Type | Line Voltage Thermostats |
