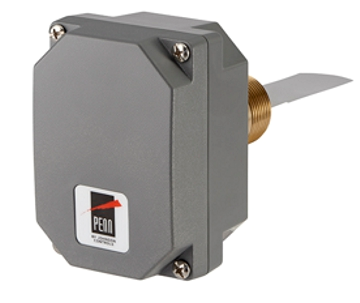

Details for F261MAL-V01C
LIQUID FLOW SWITCH; LIQUID FLOW SWITCH
Description
The F261 Series Flow Switches respond to fluid flow in lines carrying water, ethylene glycol, or other nonhazardous fluids. These models also work in applications with swimming pool water and lubricating oils.
F261 Series Standard Flow Switches use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1 inch trade size.
Refer to the F261 Series Fluid Flow Switches Product Bulletin (LIT-12011987) for important product application information.
Features
- Type 3R (NEMA) or Type 4 (NEMA) enclosure allows use in indoor or outdoor applications.
- FKM® diaphragms allow use in fluid lines carrying chlorinated water, treated water, or other nonhazardous fluids.
- low-flow operation on low-flow models actuates switch with less than 1.0 GPM (3.8 L/min) flow for water applications or 9.0 GPM (34.1 L/min) flow for steam applications.
- maximum fluid pressure of 290 psig (20 bar) permits use in a wide range of pressure flow conditions.
Repair Information
If the F261 Series Flow Switch fails to operate within its specifications, replace the unit. For a replacement F261 Series Flow Switch, contact the nearest Johnson Controls® representative.
- Liquid Flow Switch
- SPDT
- 1", 2", 3", and 6" Stainless Steel Paddles Included
- Lock-Tooth Washer and Stainless Steel Paddle Supplied Uninstalled
- NEMA 4
Specifications
Item Number | F261MAL-V01C |
Brand | Johnson Controls |
Category | Flow |
Section | Water Flow Switches |
SubCategory | Water Flow Switches |
Type | Flow Switch |
