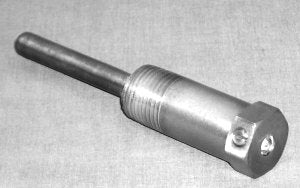

T-WELL 6" SS DIRECT MNT; THERMOWELL. 6" STAINLESS STEEL DIRECT MOUNT

Description

The TE-6300 Temperature Sensor line provides economical solutions for a wide variety of temperature sensing needs, including wall-mount, outdoor-air, duct, strap-mount, well-insertion, duct-averaging, and VAV Modular Assembly (VMA) flangemount duct-probe applications. The TE-6300 line offers both a metal and a plastic enclosure for the most popular models.

Sensors are available in the following types:

• 1k ohm thin-film nickel
• 1k ohm nickel averaging
• 1k ohm thin-film platinum
• 100 ohm platinum equivalent averaging
• 1k ohm platinum equivalent averaging
• 2.2k (2,252) ohm thermistor
• 10k ohm thermistor, Johnson Controls® Type II

Features and Benefits

Each sensor is packaged with the necessary mounting accessories to maximize ordering and installation ease and to reduce both commissioning time and cost.

• Full Line of Versatile Sensors—Supports all your temperature sensing needs from a single supplier: wall-mount, outdoor-air, duct, duct-averaging, strap-mount, wellinsertion, and flange-mount duct-probe.
• Single Assembly Ordering—Simplifies ordering; provides a complete assembly in one box.
• Models Featuring an Integral National Pipe Thread (NPT) Adaptor—Increase sensor connection strength, which eliminates the need for a special adaptor.
• Models with a Stainless Steel Sensor Probe—Protect the sensor while increasing corrosion resistance.
• Metal Enclosure (TE-63xxE, TE-63xxM, and TE-63xxV Models)—Meets plenum requirements.
• Models Featuring a Retainer for the Sensor Holder—Allow you to lock the sensor holder into the conduit box.
• Brushed Stainless Steel Mounting Plate—Offers a durable, aesthetically pleasing design.
• Low Profile Flush Mount Design (TE-63xxF Models)—Provides a tamperproof installation ideally suited for schools, sporting complexes, retailers, prisons, and more. All TE-6300 Series Temperature Sensors are two-wire, passive, resistance-output devices.

• Thermowell
• 2.38 in. Immersion Depth
• Stainless Steel
• Direct Mount
• No Adaptor Required
• For Use With 6 in. Probe Model TE-62xAM-2
