Details for TE-6300W-110

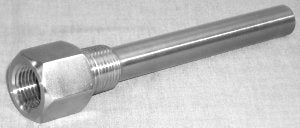

THERMOWELL 8" SS; THERMOWELL. 8" STAINLESS STEEL 1/2" NPT ADAPTER MOUNT
Description
The TE-6300 Temperature Sensor line provides economical solutions for a wide variety of temperature sensing needs, including wall-mount, outdoor-air, duct, strap-mount, well-insertion, duct-averaging, and VAV Modular Assembly (VMA) flangemount duct-probe applications. The TE-6300 line offers both a metal and a plastic enclosure for the most popular models.
Sensors are available in the following types:
- 1k ohm thin-film nickel
- 1k ohm nickel averaging
- 1k ohm thin-film platinum
- 100 ohm platinum equivalent averaging
- 1k ohm platinum equivalent averaging
- 2.2k (2,252) ohm thermistor
- 10k ohm thermistor, Johnson Controls® Type II
Features and Benefits
Each sensor is packaged with the necessary mounting accessories to maximize ordering and installation ease and to reduce both commissioning time and cost.
- Full Line of Versatile Sensors—Supports all your temperature sensing needs from a single supplier: wall-mount, outdoor-air, duct, duct-averaging, strap-mount, wellinsertion, and flange-mount duct-probe.
- Single Assembly Ordering—Simplifies ordering; provides a complete assembly in one box.
- Models Featuring an Integral National Pipe Thread (NPT) Adaptor—Increase sensor connection strength, which eliminates the need for a special adaptor.
- Models with a Stainless Steel Sensor Probe—Protect the sensor while increasing corrosion resistance.
- Metal Enclosure (TE-63xxE, TE-63xxM, and TE-63xxV Models)—Meets plenum requirements.
- Models Featuring a Retainer for the Sensor Holder—Allow you to lock the sensor holder into the conduit box.
- Brushed Stainless Steel Mounting Plate—Offers a durable, aesthetically pleasing design.
- Low Profile Flush Mount Design (TE-63xxF Models)—Provides a tamperproof installation ideally suited for schools, sporting complexes, retailers, prisons, and more.
All TE-6300 Series Temperature Sensors are two-wire, passive, resistance-output devices.
- Thermowell
- 4.5" Immersion Depth
- Stainless Steel
- 1/2 - 14 NPT Adaptor Required
- For Use With 8 in. Probe Models TE-63x2m-1 or TE-63x2P-1 (Sensor Includes Adaptor)
Specifications
Item Number | TE-6300W-110 |
Brand | Johnson Controls |
Category | Temperature Sensors |
Section | Thermowells |
SubCategory | Thermowells |
