Details for TE-6315M-1
NICKEL DUCT AVERAGE; NICKEL DUCT AVERAGE SENSO
Description

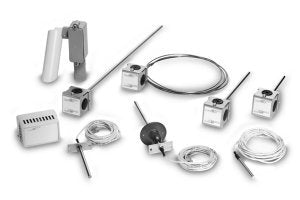

The TE-6300 Temperature Sensor line provides economical solutions for a wide variety of temperature sensing needs, including wall-mount, outdoor-air, duct, strap-mount, well-insertion, duct-averaging, and VAV Modular Assembly (VMA) flangemount duct-probe applications. The TE-6300 line offers both a metal and a plastic enclosure for the most popular models.
Sensors are available in the following types:
- 1k ohm thin-film nickel
- 1k ohm nickel averaging
- 1k ohm thin-film platinum
- 100 ohm platinum equivalent averaging
- 1k ohm platinum equivalent averaging
- 2.2k (2,252) ohm thermistor
- 10k ohm thermistor, Johnson Controls® Type II
Features and Benefits
Each sensor is packaged with the necessary mounting accessories to maximize ordering and installation ease and to reduce both commissioning time and cost.
- Full Line of Versatile Sensors—Supports all your temperature sensing needs from a single supplier: wall-mount, outdoor-air, duct, duct-averaging, strap-mount, wellinsertion, and flange-mount duct-probe.
- Single Assembly Ordering—Simplifies ordering; provides a complete assembly in one box.
- Models Featuring an Integral National Pipe Thread (NPT) Adaptor—Increase sensor connection strength, which eliminates the need for a special adaptor.
- Models with a Stainless Steel Sensor Probe—Protect the sensor while increasing corrosion resistance.
- Metal Enclosure (TE-63xxE, TE-63xxM, and TE-63xxV Models)—Meets plenum requirements.
- Models Featuring a Retainer for the Sensor Holder—Allow you to lock the sensor holder into the conduit box.
- Brushed Stainless Steel Mounting Plate—Offers a durable, aesthetically pleasing design.
- Low Profile Flush Mount Design (TE-63xxF Models)—Provides a tamperproof installation ideally suited for schools, sporting complexes, retailers, prisons, and more.
- come with a corrosion-protected steel enclosure with a 0.88 in. (22 mm) hole for a 1/2 in. (12.7 mm) conduit fitting
- include two hex-head self-drilling screws for mounting the duct and duct-averaging models
- offer either a direct-mount or 1/2-14 NPT threaded well sensor holder for mounting in TE-6300W Series Thermowells (well models; order the thermowell separately)
- provide optional well sensor holders (order separately) to mount duct models in thermowells
- meet UL 1995 plenum use requirements
- offer optional accessory kit (order separately) to replace plastic hole plug and wiring bushing to meet International Mechanical Code (IMC) requirements
- Duct Averaging Temperature Sensor - Flexible
- 1K Nickel RTD
- Resistance Output
- 8 ft. Copper Capillary
- Steel Enclosure
Specifications
Item Number | TE-6315M-1 |
Brand | Johnson Controls |
Category | Temperature Sensors |
Section | Duct Averaging Sensors |
SubCategory | Duct Averaging Sensors |
Thermostat Type | Thermostat Guards and Accessories |
