V-4332-1007 | 1/2" MIX 4-8# W/A 1.2CV | Johnson Controls
Documents and manuals
Johnson Controls V-4332-1007 Documents
Overview
Details for V-4332-1007
1/2" MIX 4-8# W/A 1.2CV
Description

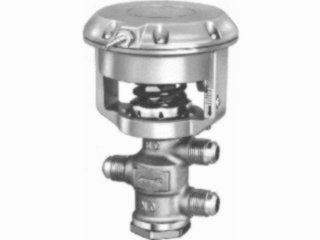

The 1/2 in. flared valve line accurately regulates the flow of hot or cold water in small HVAC terminal units. These 1/2 in. valves are available with a factory-installed V-3000-1 exposed type pneumatic actuator; enclosed actuators (V-3000-2) are also available (order separately). This valve style is available for field mounting the VA-805x Series electric actuators or with a factory-coupled VA-805x Series electric actuator. Refer to the Flare Valves 1/2 in. Two-Way and Three-Way Product Bulletin (LIT-977175) for important product application information.
Features
- 1/2 in. OD SAE 45 flare connections do not require solder installation with copper tubing; provides easy removal for maintenance
- standard Johnson Controls® non-adjustable ring pack packings provide proven reliability and long life
- body rated 400 psig static pressure does not restrict building location
- every valve tested for tight initial and long-term shutoff; ensures occupant comfort and energy conservation
- factory-assembled valves available with pneumatic or electric actuators; install quickly and easily, minimizing job site time
- 1/2" MIXING VALVE 4-8# W/A 1.2CV
Specifications
Item Number | V-4332-1007 |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Section | Valves & Actuators |
Section | Zone Valves |
SubCategory | Zone Valves |
