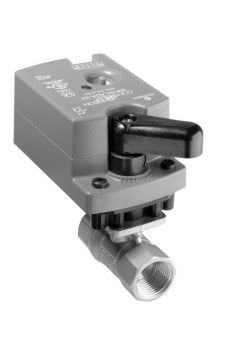

1/2" 2W BALL VALVE 4.7CV; BRASS TRIM NON-SPR RET VA9104-AGA-3S NO SWITCH FLOATING CONTROL
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104 and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application information.
Features
- Forged brass body — provides 580 psig static pressure rating.
- 200 psi closeoff pressure rating — provides tight shutoff.
- Graphite-reinforced Polytetrafluoroethylene (PTFE) seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
- Chrome-plated brass ball and stem assembly standard — handles both chilled and hot water applications with a fluid temperature range of 23°F to 203°F (-5°C to 95°C).
- 500:1 rangeability — p
- 1/2" 2-Way Characterized Control Valve
- Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
- CV 4.7
- 24 VAC
- On/Off & Floating Point With Timeout
- Non-Spring Return
- 35 in-lb Torque
- M3 Screw Terminals
- Female NPT
- 60 sec Runtime
- Close-Off 200 psi
- Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
- NEMA 1
Specifications
Item Number | VG1241AG+9T4IGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Floating |
Control Valves Type | Ball Valve |
Section | Ball 2-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Non-Spring Return |
SubCategory | Ball 2-Way w/ Electric Actuator |
Valve Size | 0.5" - 2-Way |
Voltage | 24V |
