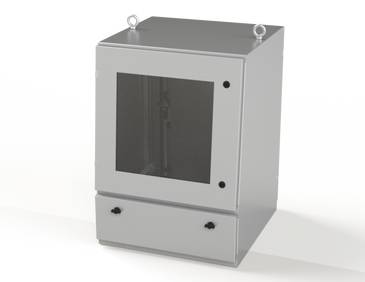

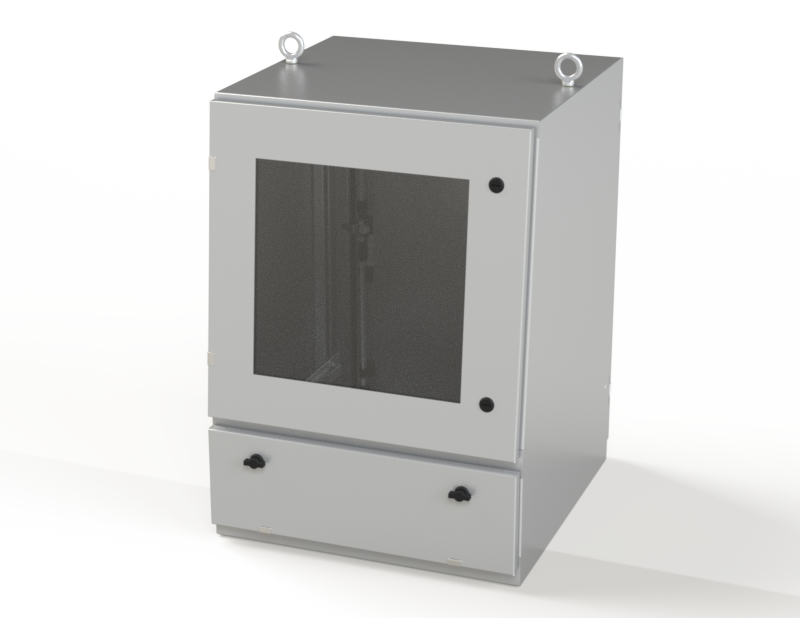

SCE-342424WS | NEMA 12 | Workstation, 34H x 24W x 24D | Saginaw

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-342424WS

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Saginaw SCE-342424WS Documents

FREIGHT DAMAGE POLICY CAD Package Pull-Out Shelf Assembly Control Compartment Keyboard Housing Panel Supports for Rack Angle Installation Panel Supports for Sub-Plate Installation Pedestals for Workstations More Info

Overview

Details for SCE-342424WS

NEMA 12 | Workstation, 34H x 24W x 24D

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
Pour in place oil and water resistant gasket
Flange trough collar around all sides of door opening.
Concealed hinges.
Removable doors.
Ground stud on door and body.
Large Polycarbonate viewing window.
Lifting eyes for easy handling.
Black, quarter turn latches on top door.
Black, quarter turn wing knob latches on keyboard door.
Black 3-point flush swing handle in back door.
Pull out keyboard shelf with attached self storing mouse shelf and mouse pad.
Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.

Application

Designed to house a computer, keyboard, monitor and other additional computer equipment in an industrial environment and provide protection from dust, oil and moisture.

Finish

RAL 7035 gray powder coating inside and out.

Industry Standards - (IS1)

NEMA Type 12 and Type 13
UL Listed Type 12
CSA Type 12
IEC 60529
IP 55

Notes

Optional panels and accessories are available.

Specifications

Item Number	SCE-342424WS
Brand	Saginaw
1 Enclosure Rating	NEMA 12
Enclosure Depth (IN)	24
Enclosure Height (IN)	34
Enclosure Type	Workstation
Enclosure Width (IN)	24
