SCE-AC1000B120V | Conditioner, Air - 1000 BTU/Hr. 120 Volt | 18.9 (H) x 10 (W) x 7.5 (D) | Saginaw

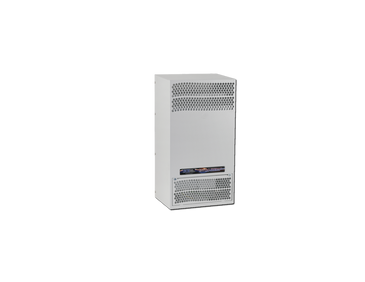

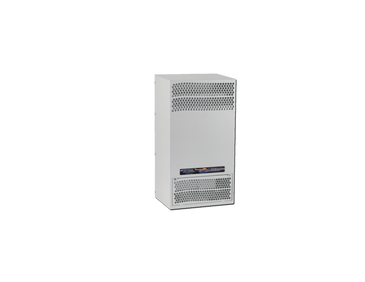

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-AC1000B120V
Documents and manuals
Saginaw SCE-AC1000B120V Documents
Overview
Details for SCE-AC1000B120V
Conditioner, Air - 1000 BTU/Hr. 120 Volt | 18.9 (H) x 10 (W) x 7.5 (D)
Construction
- Closed Loop Cooling System
- Hermitically sealed Reciprocating Compressor
- Internal Components are Corrosion Resistant
- Specially designed Active Condensate System using PTC heater element
- Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging
- Washable, Reusable 8 layer aluminum mesh filters included
- Captive screw fastened filter cover
- Integrated compressor heater for Low Ambient temperatures and up to 2000 watts of Enclosure Heat
- R134a Refrigerant - Chlorine-free and harmless to the environment
- Easy Mounting Flange hangers for installation included
- Digital Touchpad Programmable Controller, viewable and accessible from inside enclosure
- Controller Preset 95°F to cool - adjustable 68°F to 122°F
- Preset at 41°F to heat - adjustable -4°F to 122°F
- Temperature differential hysteresis 5.4°F
- High temp alarm Preset 131°F
- High performance ball bearing fans
- Door activated switch wiring provisions provided for easy installation
- Cage clamp terminal connector
- Oil and water resistant gaskets installed
Application
Enviro-Therm® Air Conditioners are designed with an internal closed loop system to provide protection from dust, oil and water. For indoor and outdoor application. Rugged, energy efficient,and reliable cooling system.
Finish
Powder coated steel Cover RAL 7035 River Texture over Aluzinc coated steel
Industry Standards - (IS19)
- NEMA Type 3R, 4 and 12
- UL Recognized Type 3R, 4 and 12
- IEC 60529
- IP 56
Notes
cULus File Component Recognized SA32278
cULus Listed E498756
Specifications
Item Number | SCE-AC1000B120V |
Brand | Saginaw |
Accessory | Conditioner; Air - 1000 BTU/Hr. 120 Volt |
Depth (IN) | 7.5 |
Height (IN) | 18.9 |
UL Rating | IS19 |
Width (IN) | 10 |
