SCE-LLB5-25 | Lifting Lug, Bolt On - Bulk | 11 (H) x 11 (W) x 4 (D) | Saginaw

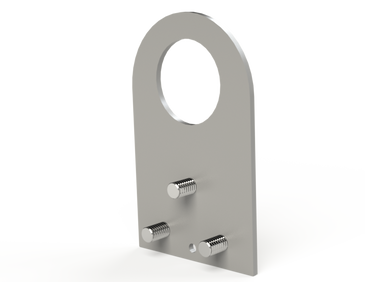

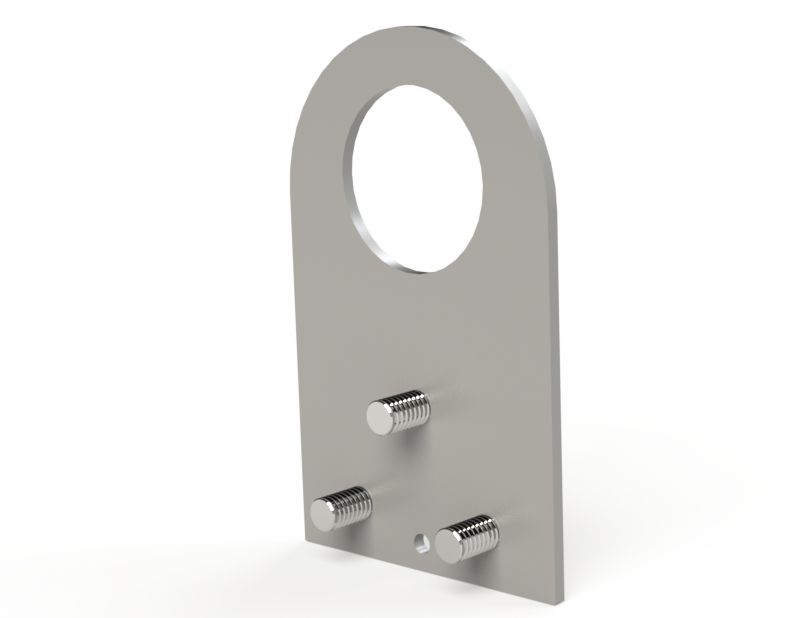

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-LLB5-25

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-LLB5-25 Documents

FREIGHT DAMAGE POLICY CAD Package Lifting Lug (Bolt On) More Info

Overview

Details for SCE-LLB5-25

Lifting Lug, Bolt On - Bulk | 11 (H) x 11 (W) x 4 (D)

Application

Lifting lugs are designed to be mounted to the left and right side of a standard wall-mount type enclosure for easy handling of fully wired enclosures. Mounting hardware is included. UL Recognized Sealing washers supplied to maintain UL ratings of Type 3R, 4, 4X and 12.

Finish

SCE-LLB5 - Steel, Zinc Plated
SCE-LLB5SS - 316 Stainless Steel with #4 Brushed finish
SCE-LLB7 - Steel, Powder Coated White

Industry Standards - (IS17)

NEMA Not Applicable
UL Not Applicable
CSA N/A

Notes

SCE-LLB7 for use with Vented 3R Enclosures
