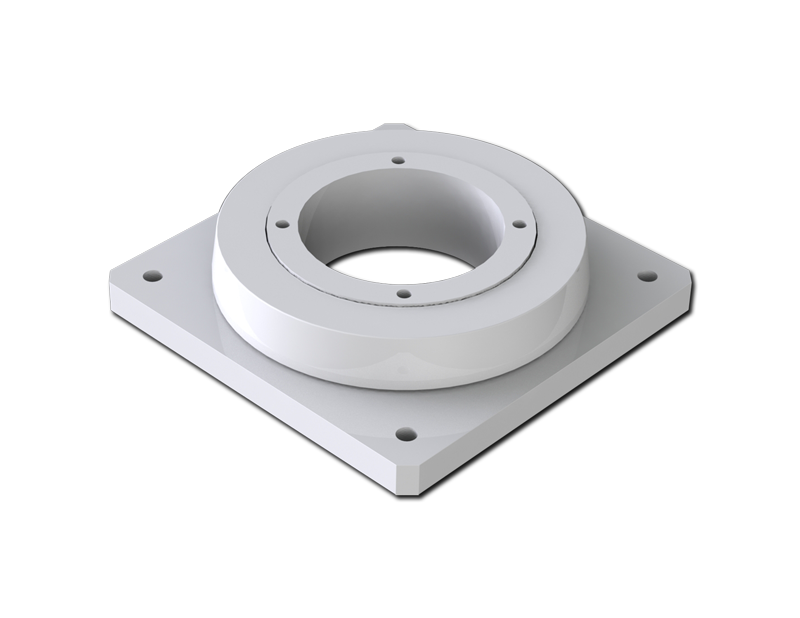

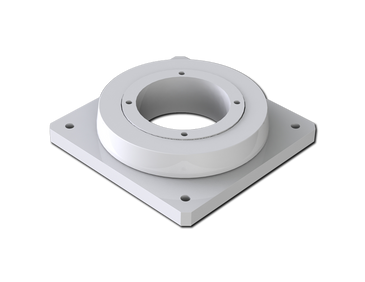

SCE-SATFS | Turnable Foot Stand, 360 Swivel | 1.34 (H) x 5.75 (W) x 5.75 (D) | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-SATFS
Documents and manuals
Overview
Details for SCE-SATFS
Turnable Foot Stand, 360 Swivel | 1.34 (H) x 5.75 (W) x 5.75 (D)
Construction
- Cast aluminum couplings.
- Extruded aluminum tubes (6060T66).
- Rotating couplings have adjustable tensioner brakes to control movement while in use.
- Rigid, durable bearing in all rotating couplings withstand the stress of continuous use.
- Open or closed tube design.
- Open tube allows for easy access to lay in wiring, with easy to install push fit rubber cover.
- Closed tube acts as conduit for feeding wiring.
- Removable access covers on all couplings with 90 degree turn.
- Hardware and gasket included for installation of coupling to tube.
Application
Designed for use with the SCE HMI enclosures, allows operators to easily move or position an HMI to an ergonomic and comfortable working position. Made of heavy-duty, reliable construction. Suspension Systems can be assembled in a multitude of configurations that allow for machine mount, wall mount, top mount, and floor mount options.
Finish
RAL 7035 powder coated finish.
*Suspension System parts cannot be custom painted
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
Notes
*Suspension System parts cannot be custom painted
Specifications
Item Number | SCE-SATFS |
Brand | Saginaw |
Accessory | Turnable Foot Stand; 360 Swivel |
Depth (IN) | 5.75 |
Height (IN) | 1.34 |
UL Rating | N/A |
Width (IN) | 5.75 |
