SCE-TE680B24VSS | Thermoelectric Cooler 680 BTU/Hr. 24 VDC | 15.75 (H) x 7.09 (W) x 6.73 (D) | Saginaw

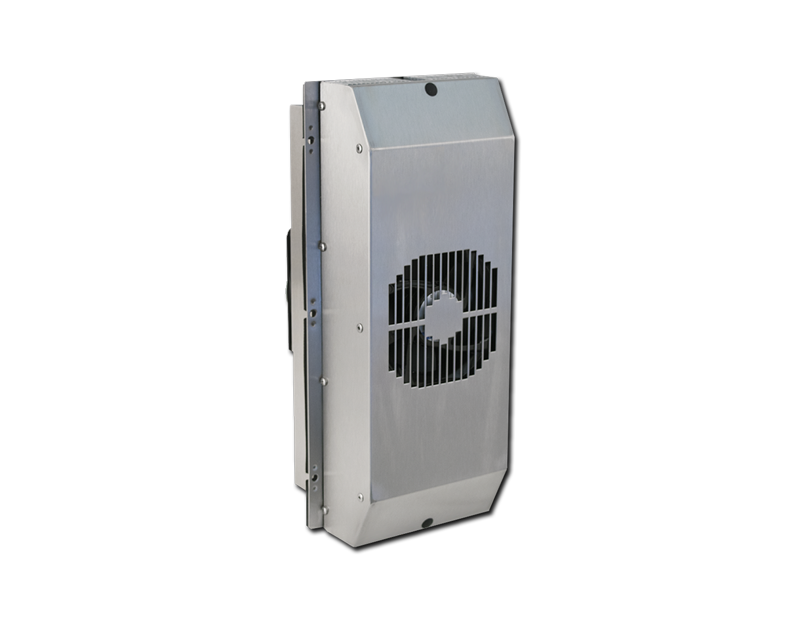

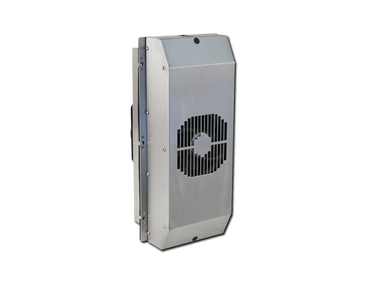

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-TE680B24VSS
Documents and manuals
Overview
Details for SCE-TE680B24VSS
Thermoelectric Cooler 680 BTU/Hr. 24 VDC | 15.75 (H) x 7.09 (W) x 6.73 (D)
Construction
- Heavy gauge stainless steel.
- DC Powered for 24V applications.
- Mount vertically or horizontally.
- Filterless design reduces maintenance requirements.
- Contains no compressor or refrigerant, making it eco-friendly.
- Pre-wired with simple terminal block for easy wiring connections.
- Operates on the Peltier effect for cooling.
- Terminal block connection.
- Operating temperature range from -4°F to 149°F.
Application
Enviro-Therm® Thermoelectric Coolers also known as Peltier units. Designed with an internal closed loop system, Thermoelectric coolers have very few moving parts and no piping, leaving less room for failure. The compact design is great for small enclosures. For indoor and outdoor applications. Protects from dust, oil and water. Rugged, energy efficient, and reliable cooling system minimizing downtime.
Finish
#4 brushed finish type 304 Stainless Steel
Industry Standards - (IS20)
- NEMA Type 3R, 4, 4X and 12
- UL Recognized Type 3R, 4, 4X and 12
- IEC 60529
- IP 56
Notes
UL File # SA32278
Specifications
Item Number | SCE-TE680B24VSS |
Brand | Saginaw |
Accessory | Thermoelectric Cooler 680 BTU/Hr. 24 VDC |
Depth (IN) | 6.73 |
Height (IN) | 15.75 |
UL Rating | IS20 |
Width (IN) | 7.09 |
