8538SDASP4 | Type S Combination Starter with Disconnect Switch, Size 2, NEMA 12 | Square D by Schneider Electric

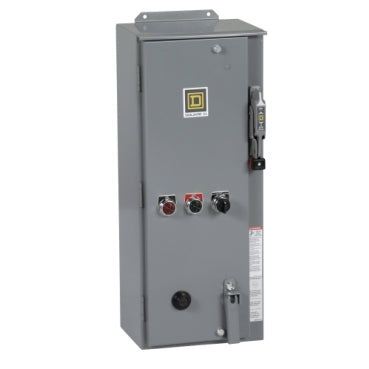

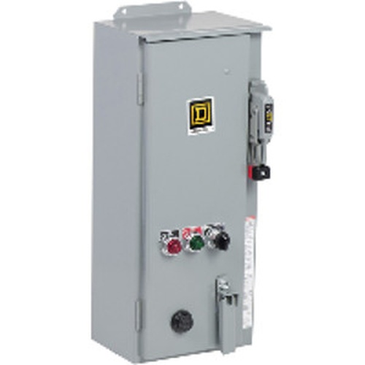

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8538SDASP4
Overview
Details for 8538SDASP4
Type S Combination Starter with Disconnect Switch, Size 2, NEMA 12
Type S Full Voltage Starter with Disconnect Switch- NEMA Size: Size 2
- Degree of Protection: NEMA 12 Industrial Use<
Specifications
- Product
- Combination Starter
- Type
- S
- Control Circuit Type
- Separate control circuit
- Control Circuit Voltage
- 110 V AC 50 Hz;120 V AC 60 Hz
- Starter Type
- Non reversing
- Line Rated Current
- 45 A
- Number of Poles
- 3P
- Horsepower Rating
- 10 hp 200 V AC;3 phase;10 hp 230 V AC;3 phase
- Maximum Voltage Rating
- 600 V AC
- Control Units
- Selector switch HAND-OFF-AUTO)
- Pilot Light
- Red indicator on LED;Green indicator off LED
- Auxiliary Contacts
- 2 NO + 2 NC
- thermal overload type
- Solid state Motor Logic class 10/20 15…45 A
- Disconnect Type
- Fusible disconnect switch H and K;60 A;electrical SPDT
- NEMA size
- 2
- Height
- 27.75 in (704.85 mm)
- Depth
- 9.59 in (243.59 mm)
- Width
- 10.5 in (266.70 mm)
- Enclosure Type
- NEMA 12 painted sheet steel with external reset
- Product Certifications
- UL Listed;CSA
- Category
- 21213-8538;39 SC;SD(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901876427
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.40 in (31.5 cm)
- Package 1 Width
- 14.02 in (35.6 cm)
- Package 1 Length
- 32.09 in (81.5 cm)
- Package 1 Weight
- 50.99 lb(US) (23.13 kg)
- Warranty
- 18 months
