QOB120VH | MINIATURE CIRCUIT BREAKER 120/240V 20A | Square D by Schneider Electric

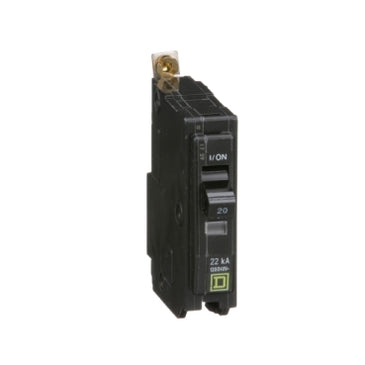

Square D | QOB120VH
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOB120VH

Documents and manuals

Square D QOB120VH Documents

Overview

Details for QOB120VH

MINIATURE CIRCUIT BREAKER 120/240V 20A

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product
Miniature circuit-breaker
Range
QO
Current Rating
20 A
Voltage Rating
120/240 V AC;120 V AC
Mounting Type
Bolt-on
Number of Poles
1P
Circuit Breaker Type
Standard
Ratings
HACR rated
Electrical Connection
Pressure plate
Interrupt Rating
22 kA 120/240 V AC 50/60 Hz;22 kA 120 V AC 50/60 Hz
Number of Panel Spaces
1
Wire Size
AWG 14...AWG 8 copper or aluminium
Tightening Torque
40.71 lbf.in (4.6 N.m)
Height
2.99 in (76 mm)
Width
0.75 in (19 mm)
Depth
2.91 in (74 mm)
Net Weight
0.30 lb(US) (0.136 kg)
Certifications
UL Listed;CSA
Ambient Rating
104 °F (40 °C)
Category
00015-QOB CIRCUIT BREAKERS
Discount Schedule
DE2
GTIN
785901371731
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.70 in (1.778 cm)
Package 1 Width
3.20 in (8.128 cm)
Package 1 Length
3.30 in (8.382 cm)
Package 1 Weight
4.80 oz (136.078 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
3.40 in (8.636 cm)
Package 2 Width
2.70 in (6.858 cm)
Package 2 Length
7.70 in (19.558 cm)
Package 2 Weight
2.85 lb(US) (1.293 kg)
Unit Type of Package 3
CAR
Number of Units in Package 3
100
Package 3 Height
8.10 in (20.574 cm)
Package 3 Width
7.70 in (19.558 cm)
Package 3 Length
17.00 in (43.18 cm)
Package 3 Weight
29.05 lb(US) (13.177 kg)
Warranty
18 months
