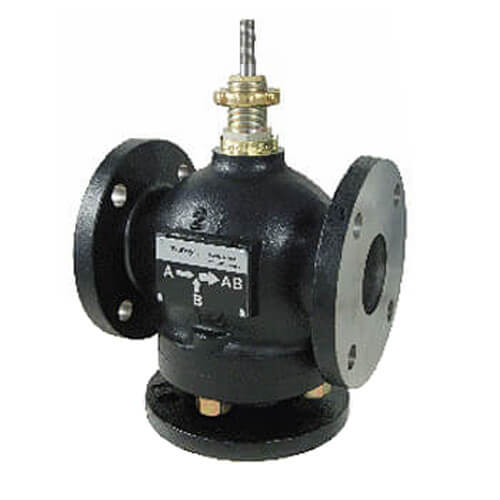

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VB-9313-0-5-13

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VB-9313-0-5-13 Documents

Datasheet More Info

Overview

Details for VB-9313-0-5-13

Schneider Electric, Globe Valve, 3 in, 3-way mixing, flanged cast iron body, bronze trim, 101 Cv

Valve Body (VB-9313-0-5-13):

Body Size: 3 in
Configuration: 3-Way Mixing
Type: Globe
Connection: Flanged
Stem Flow Action: Stem up, mixing closed A to AB
Material Trim: Brass
Flow Coefficient: 101 cv
Control Media: Water
Product Line: Schneider Electric
Product Series: VB-9300

Product Alert: Not for use with steam. VB-9213 series single seat, stem down to close, twoway valves control water from 40 to 281°F (4 to 138°C) or steam to 281°F (138°C) maximum in heating or air conditioning systems. They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately.

Specifications

Item Number	VB-9313-0-5-13
Brand	Schneider Electric
Control Input
Control Valves Type	Globe Valve
CV / GPM	101 Cv
End Switch	No
freeship	upsground
Housing	NEMA 1
Spring Return
Valve Size	3" - 3 Way
Voltage
