VS-8303-556-5-15 | VB: 5 in, 3W Mix/Div, Globe, FLG, UC, BR, 290 cv, 32 PSI; Act (MS41-7153): Elec, Prop, SR, 24 VAC/VDC, App, 133 in-lb, Rotary, N1/N2 | Schneider Electric

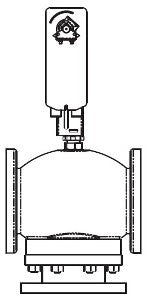

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-8303-556-5-15
Overview
Details for VS-8303-556-5-15
VB: 5 in, 3W Mix/Div, Globe, FLG, UC, BR, 290 cv, 32 PSI; Act (MS41-7153): Elec, Prop, SR, 24 VAC/VDC, App, 133 in-lb, Rotary, N1/N2
Valve Assembly:- Body Size: 5 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: 290 cv
- Close-Off Pressure: 32 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 2
- Valve Body: VB-8303-0-5-15
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-607-1
- Actuator: MS41-7153
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.
Product Alert: Not for use with steam.
Specifications
Item Number | VS-8303-556-5-15 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
CV / GPM | 290 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 5" - 3 Way |
Voltage | 24V |
