VU-8303-686-5-15 | VB: 5 in, 3W Mix/Div, Globe, FLG, UC, BR, 290 cv, 35 PSI; Act (M1500A): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 337 lb | Schneider Electric

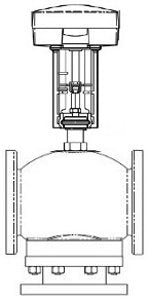

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VU-8303-686-5-15
Overview
Details for VU-8303-686-5-15
VB: 5 in, 3W Mix/Div, Globe, FLG, UC, BR, 290 cv, 35 PSI; Act (M1500A): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 337 lb
Valve Assembly:- Body Size: 5 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: 290 cv
- Close-Off Pressure: 35 PSI
- Actuator Type: Electric
- Control Signal: Floating, Proportional
- Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
- Leads and Connections: Terminal Block
- Force: 337 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-8303-0-5-15
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-822
- Actuator: M1500A
- Actuator Range: FORTA
Product Alert: Not for use with steam.
Specifications
Item Number | VU-8303-686-5-15 |
Brand | Schneider Electric |
Control Input | Floating Point |
Control Valves Type | Globe Valve |
CV / GPM | 290 Cv |
End Switch | Yes |
Housing | NEMA 1 |
Spring Return | Non-Spring Return |
Valve Size | 5" - 3 Way |
Voltage | 24V |
