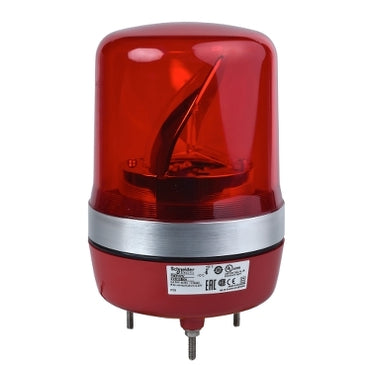

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XVR10B04

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XVR10B04 Documents

Datasheet More Info

Overview

Details for XVR10B04

Harmony XVR Rotating Mirror, Red, 106mm, 24VAC-DC, IP23 IP65

Harmony XVR Rotating Mirror

Light Source: High Luminosity LED, Red
CAD Overall Width: 106mm
Rated Supply Voltage: 24V AC/DC
Degree of Protection: IP23 conforming to IEC 60529; IP65 (with accessory) conforming to IEC 6029

Specifications

Range of Product: Harmony XVR
Product or Component Type: Prewired rotating mirror beacon
sound signalling: Without
device short name: XVR
mounting diameter: 4.17 in (106 mm)
IP degree of protection: IP55 IEC 60529 with accessory);IP23 IEC 60529
[Us] rated supply voltage: 24 V AC/DC
light source: High luminosity LED;red
Material: ABS (acrylonitrile butadiene-styrene) body part;PMMA (polymethyl methacrylate) globe
CAD overall width: 4.17 in (106 mm)
CAD overall depth: 4.17 in (106 mm)
Net Weight: 1.10 lb(US) (0.5 kg)
Marking: CE
product mounting: By 3 M4 screws
supply voltage limits: 19…30 V DC;21.6…26.4 V AC
[Uimp] rated impulse withstand voltage: 0.8 kV
Current Consumption: 125 mA
flashing frequency: 2.3 Hz
Clamping Connection Capacity: 0.83 mm²
AWG Gauge: AWG 18
Cable length: 15.75 in (400 mm)
Standards: EN 61000-6-2;EN 61000-6-4
Product Certifications: UL
protective treatment: TC
Ambient Air Temperature for Storage: -31…158 °F (-35…70 °C)
Ambient air temperature for operation: 14…122 °F (-10…50 °C)
electrical shock protection class: Class II IEC 61140
Category: 22617-XVC TOWER LIGHTS
Discount Schedule: XV
GTIN: 3606480033070
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.51 in (14.0 cm)
Package 1 Width: 5.51 in (14.0 cm)
Package 1 Length: 7.68 in (19.5 cm)
Package 1 Weight: 22.01 oz (624.0 g)
Unit Type of Package 2: S04
Number of Units in Package 2: 8
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 15.75 in (40.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 14.05 lb(US) (6.372 kg)
Warranty: 18 months
