XVUZ06 | Flexible Unit - Black | Square D by Schneider Electric

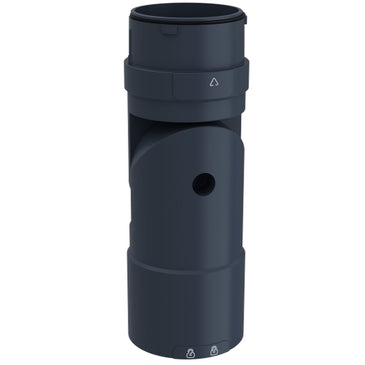

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XVUZ06

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XVUZ06 Documents

Datasheet More Info

Overview

Details for XVUZ06

Flexible Unit - Black

This flexible mounting unit is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and it is orientable at -90 to 90 degree operating angle. It also has an IP55 protection index.

Specifications

Range of product: Harmony XVU
Product or component type: Modular tower light
accessory / separate part type: Swivel mounting support
accessory / separate part category: Mounting and fixing accessory
Component name: XVU
Mounting diameter: 60 mm
Product compatibility: Top: AC body
Top: DC body
Bottom: mounting plate
Function available: Orientable at -90…90 ° operating angle
Material: PBT (polybutylene terephthalate) V-0 conforming to UL 94
ABS (acrylonitrile butadiene-styrene)
PC (polycarbonate)
[Us] rated supply voltage: 24 V AC/DC
110...240 V AC
Length: 146 mm
Net weight: 0.193 kg
Ambient air temperature for storage: -40…70 °C
Ambient air temperature for operation: -25…50 °C
IP degree of protection: IP55
product certifications: CSA
CE
UL
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.0 cm
Package 1 Width: 9.1 cm
Package 1 Length: 26.8 cm
Package 1 Weight: 380.0 g
Unit Type of Package 2: S04
Number of Units in Package 2: 24
Package 2 Height: 30 cm
Package 2 Width: 40 cm
Package 2 Length: 60 cm
Package 2 Weight: 10.44 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 96
Package 3 Height: 75 cm
Package 3 Width: 60 cm
Package 3 Length: 80 cm
Package 3 Weight: 40.6 kg
