SSA81U | Zone Valve Electronic Actuator, 24V, 3P control signal, NSR, NC, 2.5m leads. | Siemens
SSA Series electronic zone valve actuator, 24 Vac, normally closed, 3-Position. Works with Siemens 599 Series zone valves with 1/10-inch (2.5 mm) stroke. Comes with a 2.5-meter cable. UL listed for plenum installations, manual override.

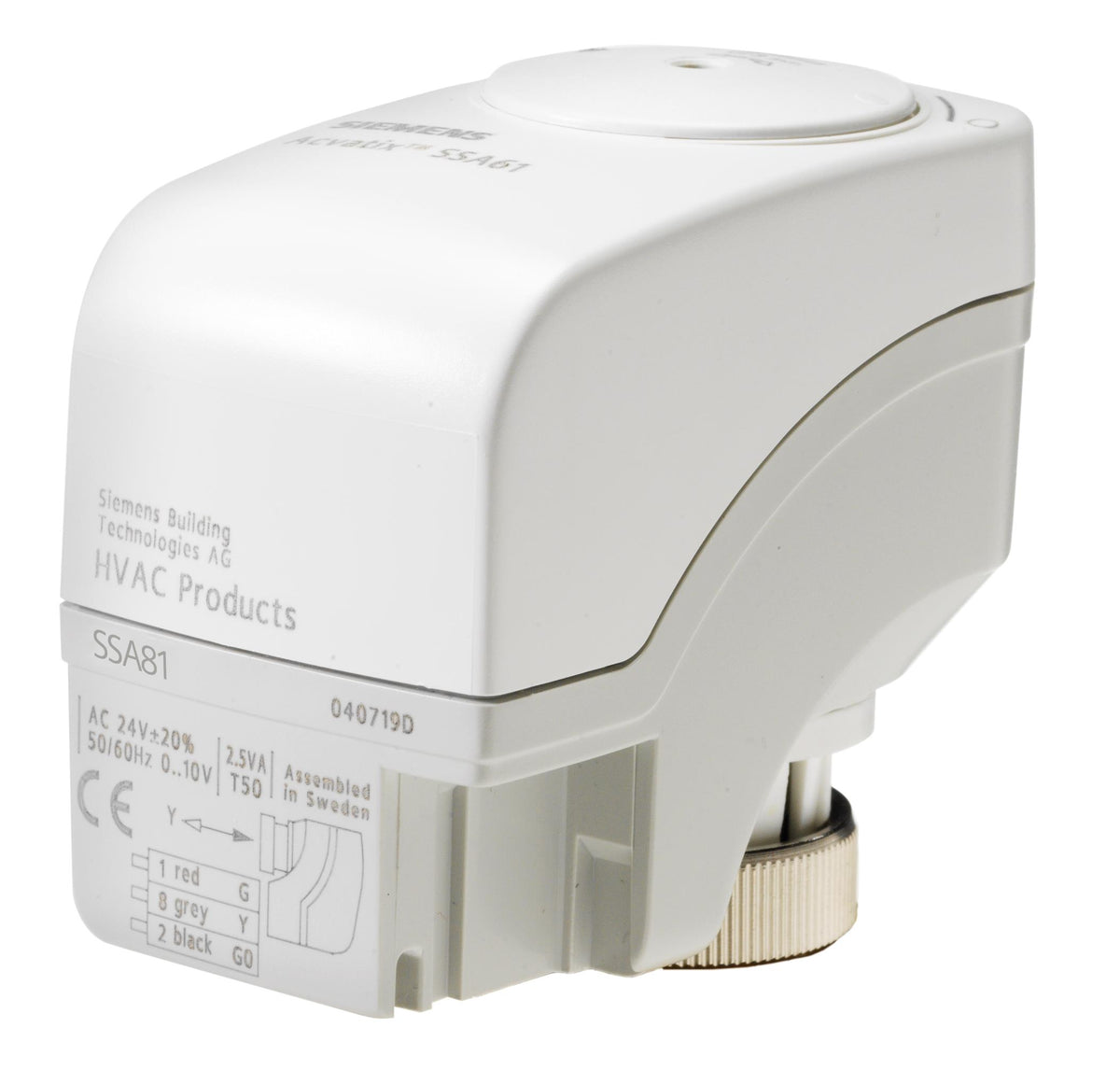

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SSA81U
Documents and manuals
Siemens SSA81U Documents
Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve SSA Series 24 Vac Electronic Valve Actuator: Floating or 0 to 10 Vdc Control Fail-in-Place Technical Instructions)Installation instruction(599 Series Zone Valves SSA Electronic Valve Actuator 24 Vac Floating or 0 to 10V Control Fail-in-Place Installation Instructions) Installation Instructions More Info
Overview
Details for SSA81U
Zone Valve Electronic Actuator, 24V, 3P control signal, NSR, NC, 2.5m leads.
Specifications
- Actuator Type
- Electronic
- Control Signal
- Floating control
- Positioning signal
- 3-position, floating
- Positioning time
- 150 s
- Power consumption
- 0.8 VA
- Mounting position
- NEMA 1 (interior only)
- Ambient temperature, operation
- 1…110 °C
- Operating voltage
- 19.2…28.2 V24 V#AC/DC
- Supply Voltage
- 24 VAC
- Stroke
- 2.5 mm
- Cable length
- 2.5 m
- Dimensions (W x H x D)
- 3.3 x 3.25 x 1.88 in
- Degree of protection
- IP54
