HOMT1515230 | MINIATURE CIRCUIT BREAKER, 2P, 120/240V 15A | Square D by Schneider Electric

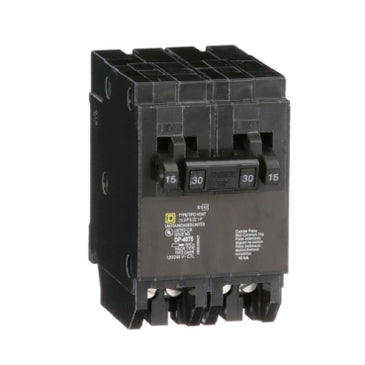

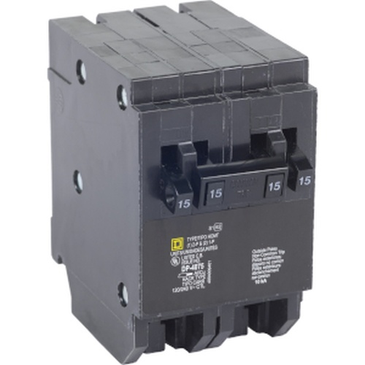

Square D | HOMT1515230
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOMT1515230

Documents and manuals

Square D HOMT1515230 Documents

Overview

Details for HOMT1515230

MINIATURE CIRCUIT BREAKER, 2P, 120/240V 15A

MINIATURE CIRCUIT BREAKER
  • Current Rating : 15 A, 30 A
  • Voltage Rating : 120/240 V AC
  • Number of Poles : 2P
  • Short Circuit Current Rating : 10 kA
  • Circuit Breaker Type : Quad tandem
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 30A at 120/240 VAC and the single pole breakers are rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Product
Miniature circuit-breaker
Range
Homeline
Current Rating
15 A;30 A
Certifications
UL Listed
Voltage Rating
120/240 V AC
Mounting Type
Plug-in
Number of Poles
2P;1P
Short Circuit Current Rating
10 kA
Number of Spaces
2
Circuit Breaker Type
Quad tandem
Ratings
HACR rated
Electrical Connection
Box lugs
Wire Size
AWG 14...AWG 8 aluminium/copper)1
tightening torque
35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height
3.13 in (79.50 mm)
Width
2 in (50.80 mm)
Depth
2.98 in (75.69 mm)
Ambient air temperature for operation
104 °F (40 °C)
Category
00046-HOM/T 15-30A 1P; 15-60A 2P
Discount Schedule
DE3D
GTIN
785901101017
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.00 in (5.08 cm)
Package 1 Width
3.00 in (7.62 cm)
Package 1 Length
3.20 in (8.128 cm)
Package 1 Weight
13.60 oz (385.554 g)
Warranty
Lifetime
