SKU: CU-865H922 | Current Transducer | Split-Core | 0-120A | 0-5VDC | Veris

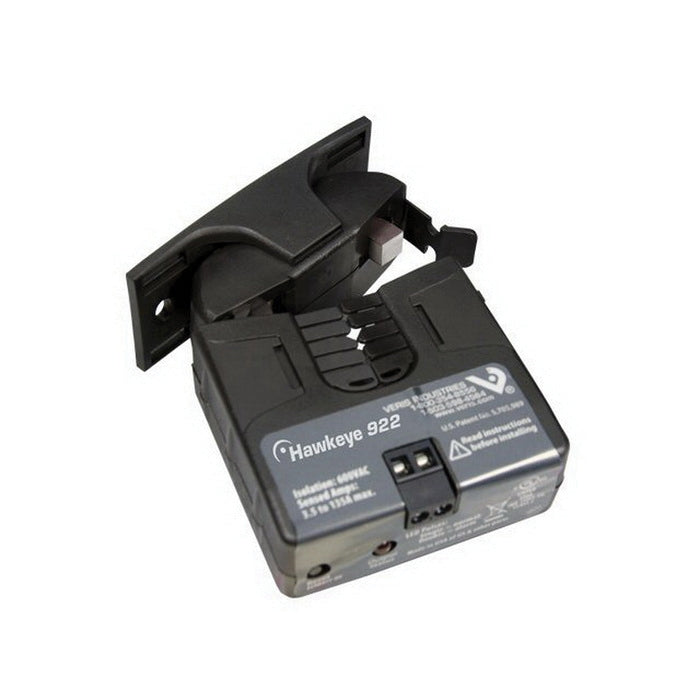

Hawkeye 0 to 30/60/120 A Input 0 to 5 VDC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H922
Documents and manuals
Veris H922 Documents
Overview
Details for H922
Current Transducer | Split-Core | 0-120A | 0-5VDC
Description
The Hawkeye 722, 822, and 922 provide accurate load trending information with a proportional 0-5VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers (available on some models).
APPLICATIONS
- Load trending
- Motor control
- Positive proof of flow
Specifications
Item Number | H922 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Accuracy | ±2% of F.S. above 10% of F.S. |
Current Measurement Range | 0 - 30 A | 0 - 60 A | 0 - 120 A |
Current Sensor type | Current Transducer; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H922 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.8" (21 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | 0 - 5 VDC |
Outputs | Analog output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX22 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Sensor (Hawkeye) |
Warranty | 5 years |
