HED5VSX | RH | Economy | Duct | 5% | 0-10 | Veris
ABS Plastic +/-5% Accuracy 0 to 5/0 to 10 VDC Standard Duct Mount Humidity Sensor

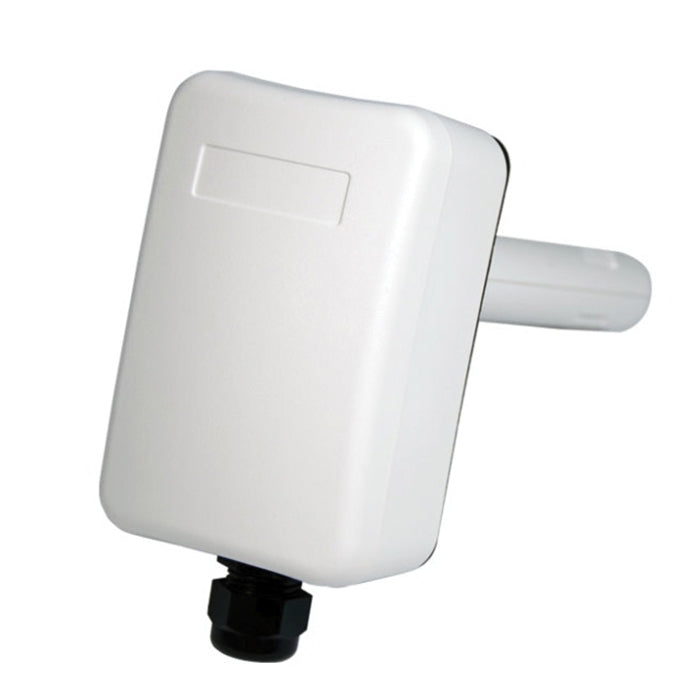

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HED5VSX
Documents and manuals
Veris HED5VSX Documents
Overview
Details for HED5VSX
RH | Economy | Duct | 5% | 0-10
HED standard series duct mount humidity transmitters offer high performance in an easy to install housing at an affordable price. The thin-film capacitive sensor element provides high accuracy and performance, great long-term stability, and full recovery from saturation. The duct-mounted HED includes a rugged all plastic housing with a tool-less gasketed entry lid, large cage clamp terminal blocks, and sturdy ABS material. All Standard models come with a standard 1 year warranty.
- RH - monitor humidity with a single device reduces installation costs
- Easy hook-up - large cage clamp terminal blocks easy hook-up with no wire nuts
- Circuitry is embedded in the probe for durability and protection
- No lost screws - tool-less gasketed entry lid
- Digitally profiled thin-film capacitive, non-removable RH element
Specifications
Item Number | HED5VSX |
Brand | Veris |
Application Zone | Plant Room |
Application | Duct |
Brand | Veris |
Color | Cloud White |
Dimension Depth | 2.1" (53 mm) |
Dimension Height | 4.9" (123 mm) |
Dimension Probe Diameter | 1.0" (25.4 mm) |
Dimension Probe Length | 6.1" (155 mm) |
Dimension Width | 3.2" (82 mm) |
Electrical Wiring Size | 24 - 14 AWG (0.22 - 2.5 mm²) |
Enclosure Material | ABS Plastic |
Feature Level | Economy |
Humidity Calibration Certificate | None |
Humidity Measurement Accuracy | ±5% |
Humidity Measurement Drift | =1% annually |
Humidity Measurement Range | 0 - 100% RH |
Humidity Measurement Resolution | 0.1% RH |
Humidity Sensor Type | Thin film capacitive |
Measurement Type | Humidity |
Mounting | Duct |
Operating Humidity | 0-100% RH; non-condensing (will recover from saturation) |
Operating Temperature | -40 - 122 °F (-40 - 50 °C) |
Output Specifications | 0 - 5 V | 0 - 10 V |
Outputs | Analog output |
Product Certification | CE |
Product Type | Sensor |
Range | HED |
Response Time | 110 s (to 90% change @ 20 °C) |
Sensor Configuration | Duct |
Sensor | Temp and Humidity 5% |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage DC Range | 12 - 30 VDC |
Temperature Sensor Type | None |
Warranty | 1 year |
