HEW3VSTC | RH/T | Economy | Wall | 3% | 0-10 | 1k Pt | Veris

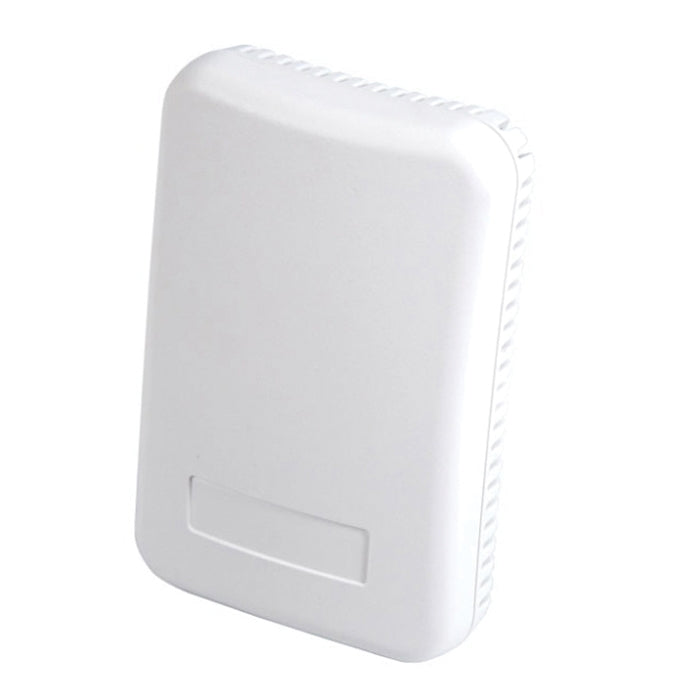

ABS Plastic +/-3% Accuracy 0 to 5/0 to 10 VDC 1 kOhm Platinum RTD Standard Wall Mount Humidity and Temperature Sensor

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HEW3VSTC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris HEW3VSTC Documents

CE Declaration Datasheet Installation Guide More Info

Overview

Details for HEW3VSTC

RH/T | Economy | Wall | 3% | 0-10 | 1k Pt

HD & HO Series Deluxe humidity transmitters provide an ideal solution for measuring relative humidity in a wide range of conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. These sensors are calibrated to NIST standards, with certificates available (see Ordering Information; choose “N" in NIST block). Temperature sensing options are also available. The duct mounted HD is encased in a die cast metal housing for extra strength. The outdoor HO housing is completely weather proof – the most rugged sensor available. All Deluxe HD and HO models come with a standard five-year warranty

Specifications

Item Number	HEW3VSTC
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Color	Cloud White
Dimension Depth	1.3" (33 mm)
Dimension Height	4.9" (123 mm)
Dimension Width	3.2" (82 mm)
Display Type	None
Electrical Wiring Size	24 - 14 AWG (0.22 - 2.5 mm²)
Enclosure Material	ABS Plastic
Feature Level	Economy
Humidity Calibration Certificate	None
Humidity Measurement Accuracy	±3%
Humidity Measurement Drift	=1% annually
Humidity Measurement Range	0 - 100% RH
Humidity Measurement Resolution	0.1% RH
Humidity Sensor Type	Thin film capacitive
Measurement Type	Humidity \| Temperature
Mounting	Wall
Operating Humidity	0-100% RH; non-condensing (will recover from saturation)
Operating Temperature	50 - 95 °F (10 - 35 °C)
Output Specifications	0 - 5 V \| 0 - 10 V
Outputs	Analog output \| Resistive temperature output
Override	No
Product Certification	CE
Product Type	Sensor
Range	HEW
Response Time	110 s (to 90% change @ 20 °C)
Sensor Configuration	Room Only
Sensor	Temp and Humidity 3%
Setpoint	No
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	12 - 30 VDC
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	1k Ohm Platinum RTD
Warranty	1 year
