PW2XX05S | Pressure | Wet | NEMA 4 | 0-250PSID | Veris
12 to 24 VDC Input 4 to 20 mA Output Wet Media Differential Pressure Transducer, 0 to 250 psig

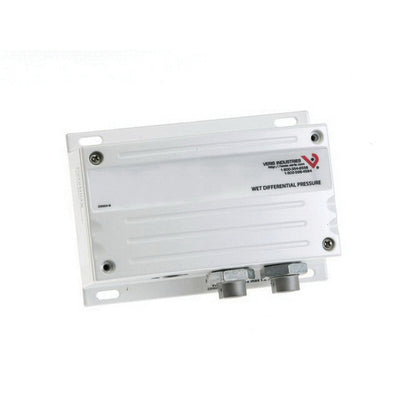

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PW2XX05S
Documents and manuals
Veris PW2XX05S Documents
Overview
Details for PW2XX05S
Pressure | Wet | NEMA 4 | 0-250PSID
Features
- The jumper-selectable output switch for normal (4-20mA) or reverse (20-4mA) operation provides application flexibility
- Rugged, die-cast enclosure provides NEMA 4 sealing
- Selectable differential units: psid or bard
- Dual sensor design for improved overpressure tolerance... eliminates the requirement for a bypass valve assembly in most applications
- Jumper-controlled electronic surge dampening for high stability
- Pushbutton zero calibration – no trim pots to adjust...maintain accuracy and reduce callbacks with automatic zero calibration
- Jumper-selectable port swap feature eliminates costly replumbing the high and low ports are improperly plumbed... change the jumper position from normal to swap – problem solved!
- Switch-selectable pressure ranges...fewer models to order and stock
- LCD displays high pressure, low pressure, and differential pressure with easy readability
Description
The PW2 Series 2-wire, 4-20mA wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW2 Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors, and other non-corrosive wet media applications
Applications
- Monitoring and controlling pump differential pressure
- Chiller/boiler differential pressure drop
- CW/HW system differential pressure
- Microprocessor provides digital signal conditioning
- Noise rejection reduces fluctuating readings due to noise or turbulence
- Surge damping prevents false alarms by averaging fast peaks
Specifications
Item Number | PW2XX05S |
Brand | Veris |
Application Zone | Plant Room |
Application | Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring |
Brand | Veris |
Burst Pressure | 1;250 psi (85 bar) |
Calibration Certificate | No |
Dimension Depth | 2.2" (56 mm) |
Dimension Height | 4" (102 mm) |
Dimension Width | 5.8" (147 mm) |
Direction | Unidirectional |
Display Type | None |
Electrical Wiring | 2-wires (loop-powered) |
Enclosure Material | Powder Coated Aluminium |
Fitting Material | Stainless Steel |
Fitting Size | 1/ 8” NPT |
Fitting Type | Female |
IP Protection | IP65 (NEMA 4) |
Measurement Type | Differential Pressure |
Medium | Water |
Model | PW2XX05S |
Mounting | Panel |
Operating Current | 29 mA |
Operating Humidity | 0 - 90% RH; non-condensing |
Operating Temperature | 14 - 130 °F (-10 - 55 °C) |
Output Specifications | 4 - 20 mA |
Outputs | Analog output |
Pressure Measurement Accuracy | Range A; B and C: ±1% of F.S. Range D: ±2% of F.S. |
Pressure Measurement Range | 0 - 25 psi (0 - 1.7 bar) | 0 - 50 psi (0 - 3.5 bar) | 0 - 100 psi (0 - 7 bar) | 0 - 250 psi (0 - 17 bar) |
Pressure Range | 0-250 psid |
Pressure Sensor Type | Differential (wet to wet) |
Pressure Sensor w LCD | Yes |
Product Certification | CE |
Product Type | Sensor |
Range | PW2 |
Sensor | Pressure |
Standards EMC | EN 61000-6-1 |
Supply Voltage DC Range | 12 - 24 VDC |
Warranty | 5 years |
