TEC10 | Temp Economy Wall | 1k Pt | Override | Veris

Cloud White ABS Plastic 1 kOhm Platinum RTD PTC Temperature Sensor, Push Button Override

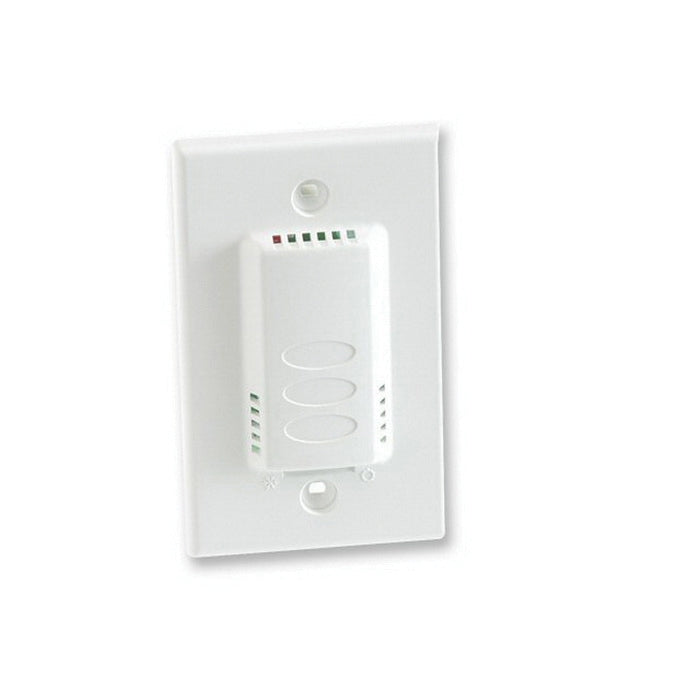

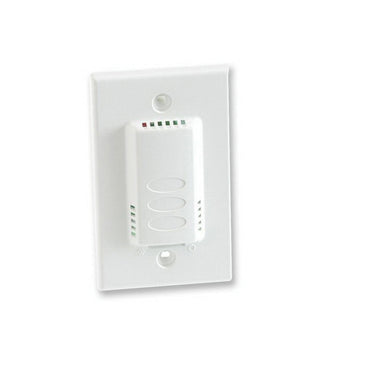

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEC10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TEC10 Documents

Datasheet Installation Guide More Info

Overview

Details for TEC10

Temp Economy Wall | 1k Pt | Override

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
Push button override

Specifications

Item Number	TEC10
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEC10
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	Yes
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room sensor with override
Sensor	Temperature
Setpoint	No
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	1k Ohm Platinum RTD
Warranty	5 years
