V221 | Enc Rly | SPST | 20A | w/HOA | Veris

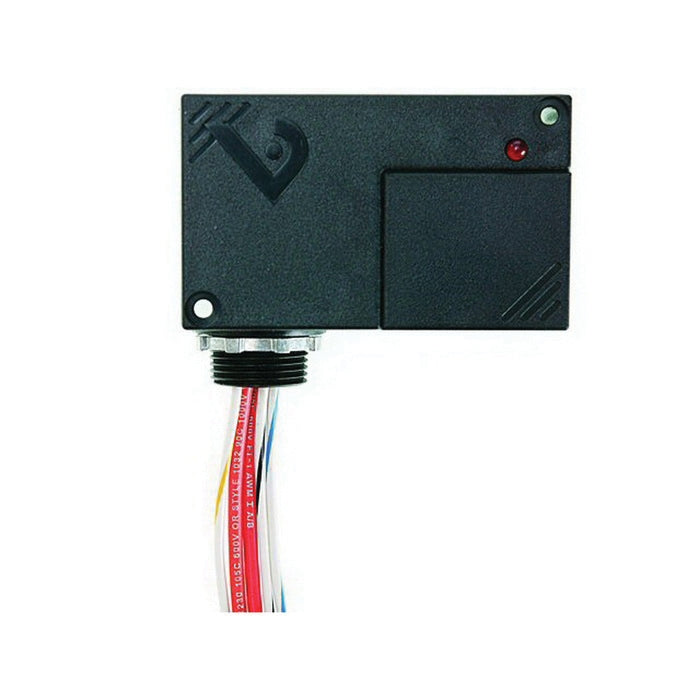

Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay with HOA Switch, SPST/NO
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V221
Documents and manuals
Veris V221 Documents
Overview
Details for V221
Enc Rly | SPST | 20A | w/HOA
The Victory 221 series HOA relays have a concealed HOA switch for local control and troubleshooting with limited unauthorized switch manipulation.
- Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
- Nipple mount - allows the V121 series to be mounted to any electrical enclosure easing installation
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
- Sleek enclosure - reduces the need for panel space
Specifications
Item Number | V221 |
Brand | Veris |
Application | Building Automation Systems |
Coil | 208-277VAC |
Coil | 24VAC/DC |
Electrical Wiring Size | Coil: 18 AWG (0.25 mm²); Contacts: 12 AWG (4 mm²); HOA: 16 AWG (1.5 mm²) |
Enclosed | Yes |
Hand-Off-Auto | Yes |
Model | V221 |
Mounting | DIN | Wall |
Operating Temperature | -40 - 131 °F (-40 - 55 °C) |
Product Certification | UL |
Product Type | Relay |
Range | Victory Series |
Relay Coil Voltage | 24 VAC/DC | 208 - 277 VAC |
Relay Construction | Mechanical |
Relay Contact Ratings | 12 A @ 14 VDC | 8 A @ 28 VDC | 20 A @ 240 VAC |
Relay Poles/Throw | SPST |
Warranty | 5 years |
