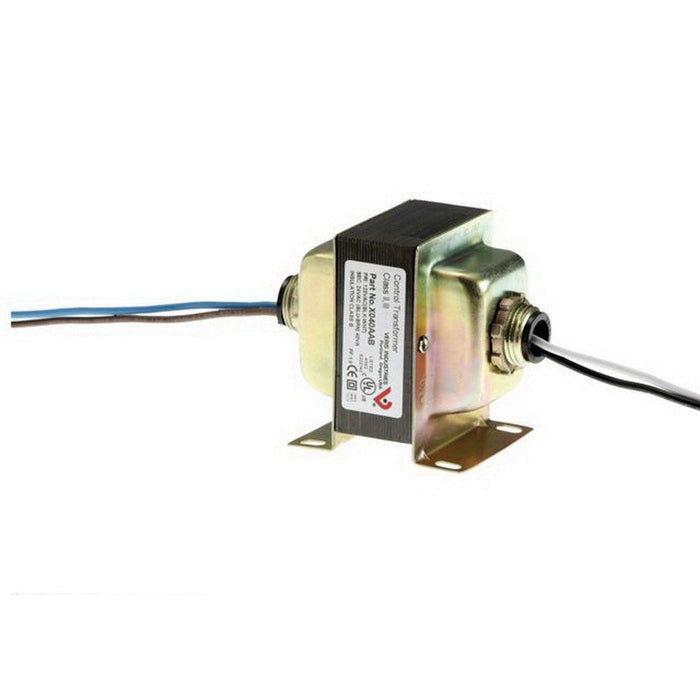

X040ADA | CONTROL TRANSFORMER | 40VA | 24-24VAC | FT&SINGLE HUB MNT | Veris
24 VAC Primary 24 VAC Secondary Standard Control Transformer with Inherent Protection, 1 Hub and Foot, 40 VA
Documents and manuals
Veris X040ADA Documents
Overview
Details for X040ADA
CONTROL TRANSFORMER | 40VA | 24-24VAC | FT&SINGLE HUB MNT
Features
- UL listings for all models simplify panel building requirements
- Threaded hub options maximize installation flexibility
- One stop shopping save time by ordering along with other Veris products
Description
Veris X Series Control Transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models. Save ordering time and purchase order costs when buying other Veris sensors by including transformers in your order.
Application
- Controller power
- Driving relays and other digital I/O circuits
- Powering sensors
Specifications
Frequency 50/60Hz
Operating Temperature -40° to 65°C (-40° to 149°F)
No Load Voltage 27-28VAC
Hub Style Fits 1/2" electrical k.o.
Wire UL 1015, 18 AWG*
Wire Length 8 inches
Specifications
Item Number | X040ADA |
Brand | Veris |
Application | Building Automation Systems |
Current Protection | Inherent |
Hub | Single |
Insulation Class | 2 |
Model | X040ADA |
Mounting | 1 Hub | 1 Foot |
Operating Temperature | -40 - 149 °F (-40 - 65 °C) |
Power Consumption | 40 VA |
Primary | 24V |
Product Certification | UL | CE |
Product Type | Transformer |
Range | X series |
Secondary Voltage AC Nominal | 24 VAC |
Secondary Voltage AC Range | 24 VAC |
Secondary | 24V |
Supply Voltage AC Nominal | 24 VAC |
upsground | only |
VA | 40VA |
Warranty | 5 years |
