Overview
Details for EISK8-100T/FT

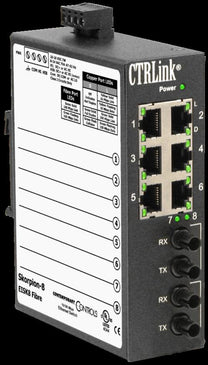

6-port 100BASE-TX, 2-port 100BASE-FX (multimode) Skorpion switch w/ ST connectors
Description

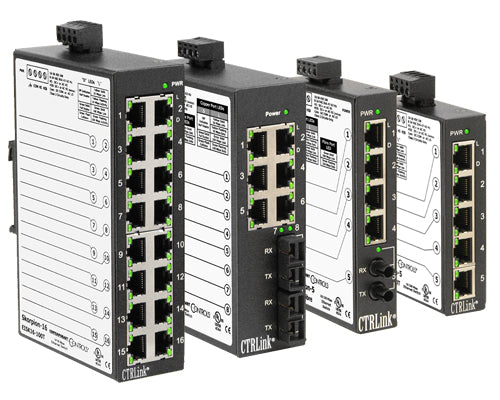

The Skorpion Switch is intended for control panel installations where DIN-rail space is at a premium by requiring a width of only 41 mm of rail space. A metal DIN-rail clip attached to the aluminium enclosure can survive the toughest installation. A writable side label allows the installer an opportunity to document field cabling locations right on the unit.
Each unit is powered from either a 10–36 VDC or 24 VAC (±10%) source. A half-wave rectified lowvoltage power supply allows the sharing of power with other 24 VAC/VDC control devices from a common power supply. With redundant power connections, a backup power scheme can be supported. A removable power connector facilitates the servicing of the unit.
LEDs built into each RJ-45 connector indicate data rate and activity on each copper port — greatly assisting in troubleshooting.
Each unit is UL 508 Listed and c-UL Listed for Industrial Control Equipment, complies with CFR 47 Part 15 Class A, carries the CE Mark and each is RoHS compliant.
Specifications
Item Number | EISK8-100T/FT |
Brand | Contemporary Controls |
Fibre Ports | 2 (Multimode) |
Operating Temperature Range | 0 C to 60 C |
Ports | 8 |
Speed | 100 |
Switch Type | Basic |
